Hitachi LANDCROS ZX690LC-7H Service Parts

15 parts on Hitachi's maintenance schedule for the ZX690LC-7H: filters and elements with the current part number, the service interval and the quantity per machine. 14 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZX690LC-7H, issued July 2024. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

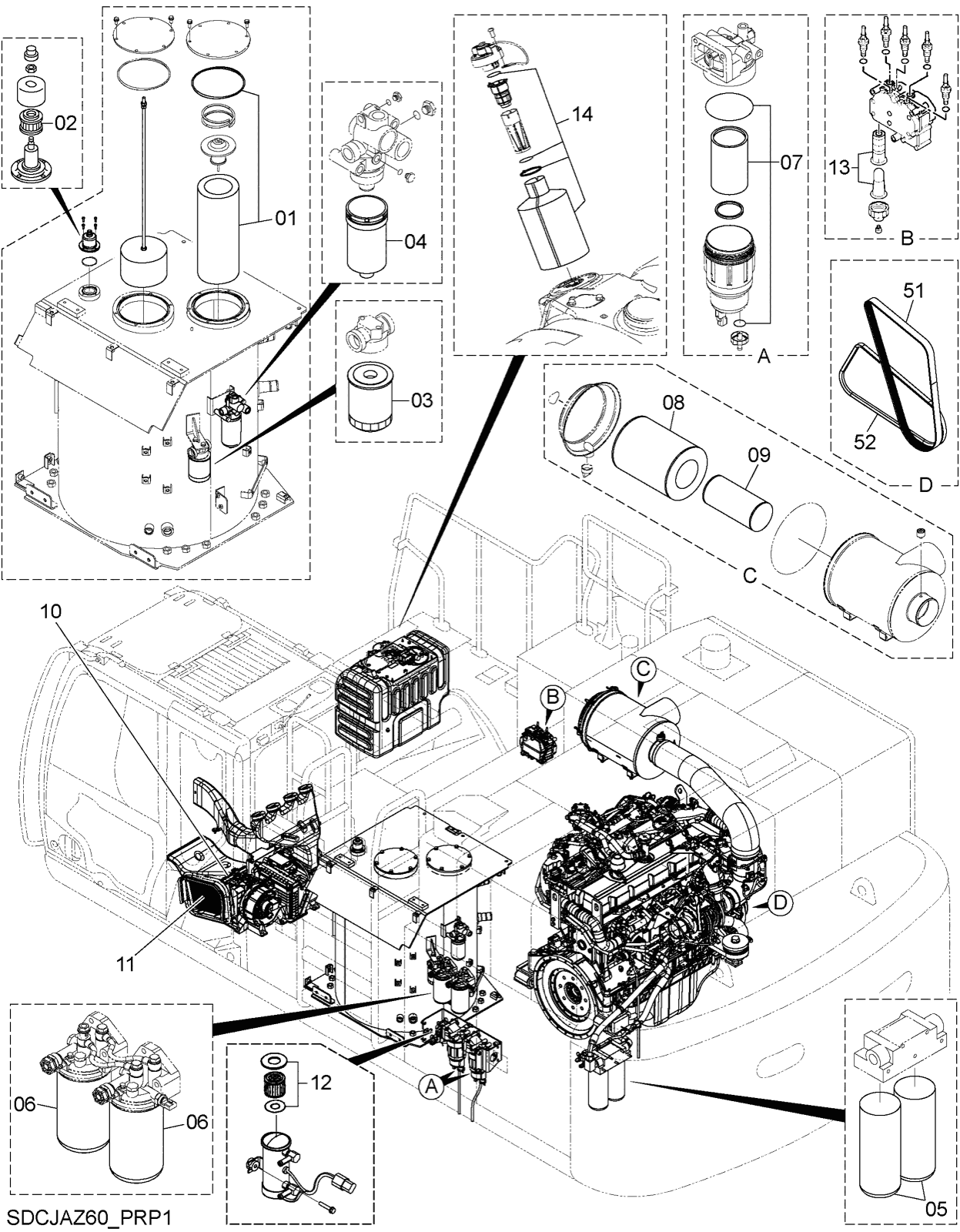

Hitachi LANDCROS ZX690LC-7H periodic replacement drawing, Filter, element, belt parts
Fig 1: Filter, element, belt parts

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058206formerly listed as 8980305320Oil separator element1 per machineEvery 500 hoursnoneQuote on request
YA00058283formerly listed as 4658521Engine oil filterFILTER;OIL2 per machineEvery 500 hoursRef 05$65.99 each

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4658052Solenoid valve fuel pump strainer gasketGASKET1 per machineEvery 1,000 hoursRef 12$13.28 each
YA00005785Fuel pre-filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 07$60.00 each
YA00086177formerly listed as YA00033486Fuel main filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 06$97.83

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
3098170130formerly listed as 4240294Air cleaner element (outer)ELEMENT;FILTER2 per machineClean every 250 hours or when the restriction indicator comes on. Replace after 6 cleanings or after one year.Ref 08$162.48
4240295Air cleaner element (inner)ELEMENT;FILTER2 per machineReplace with the outer element.Ref 09$139.95 each

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4363399Pump drain filterCARTRIDGE1 per machineEvery 1,000 hoursRef 03$37.35 each
YA00085409formerly listed as 4654745High performance full-flow filterELEMENT;FILTER2 per machineEvery 1,000 hoursRef 01$184.89 each
4437838Hydraulic air breather elementELEMENT1 per machineEvery 4,000 hoursRef 02$29.80 each

Pilot

Pilot parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4630525Pilot filter (with O-ring)ELEMENT;FILTER1 per machineEvery 1,000 hoursRef 04$35.34 each

Cab air

Cab air parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00022308formerly listed as YA00032683Air conditioner fresh air filterFILTER;AIR1 per machineClean every 250 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings.Ref 11$75.47 each
YA00054032Air conditioner circulating air filterELEMENT;FILTER1 per machineClean every 250 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings.Ref 10$82.28 each

DEF

DEF parts on Hitachi's maintenance schedule for the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058284formerly listed as YA00047054DEF supply module main filterFILTER1 per machineEvery 4,500 hoursRef 13$140.28 each
YA00075878DEF tank water supply inlet filterFILTER1 per machineEvery 4,500 hoursnone$248.98 each

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 500 hours

2 parts for the ZX690LC-7H 500 hour service.
Parts due at 500 hours on the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058206formerly listed as 8980305320Oil separator element1 per machineEvery 500 hoursnoneQuote on request
YA00058283formerly listed as 4658521Engine oil filterFILTER;OIL2 per machineEvery 500 hoursRef 05$65.99 each

Due at 1,000 hours

8 parts for the ZX690LC-7H 1,000 hour service.
Parts due at 1,000 hours on the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058206formerly listed as 8980305320Oil separator element1 per machineEvery 500 hoursnoneQuote on request
YA00058283formerly listed as 4658521Engine oil filterFILTER;OIL2 per machineEvery 500 hoursRef 05$65.99 each
4658052Solenoid valve fuel pump strainer gasketGASKET1 per machineEvery 1,000 hoursRef 12$13.28 each
YA00005785Fuel pre-filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 07$60.00 each
YA00086177formerly listed as YA00033486Fuel main filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 06$97.83
4363399Pump drain filterCARTRIDGE1 per machineEvery 1,000 hoursRef 03$37.35 each
YA00085409formerly listed as 4654745High performance full-flow filterELEMENT;FILTER2 per machineEvery 1,000 hoursRef 01$184.89 each
4630525Pilot filter (with O-ring)ELEMENT;FILTER1 per machineEvery 1,000 hoursRef 04$35.34 each

Due at 4,000 hours

9 parts for the ZX690LC-7H 4,000 hour service.
Parts due at 4,000 hours on the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058206formerly listed as 8980305320Oil separator element1 per machineEvery 500 hoursnoneQuote on request
YA00058283formerly listed as 4658521Engine oil filterFILTER;OIL2 per machineEvery 500 hoursRef 05$65.99 each
4658052Solenoid valve fuel pump strainer gasketGASKET1 per machineEvery 1,000 hoursRef 12$13.28 each
YA00005785Fuel pre-filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 07$60.00 each
YA00086177formerly listed as YA00033486Fuel main filter elementFILTER;FUEL2 per machineEvery 1,000 hoursRef 06$97.83
4363399Pump drain filterCARTRIDGE1 per machineEvery 1,000 hoursRef 03$37.35 each
YA00085409formerly listed as 4654745High performance full-flow filterELEMENT;FILTER2 per machineEvery 1,000 hoursRef 01$184.89 each
4437838Hydraulic air breather elementELEMENT1 per machineEvery 4,000 hoursRef 02$29.80 each
4630525Pilot filter (with O-ring)ELEMENT;FILTER1 per machineEvery 1,000 hoursRef 04$35.34 each

Due at 4,500 hours

4 parts for the ZX690LC-7H 4,500 hour service.
Parts due at 4,500 hours on the ZX690LC-7H
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058206formerly listed as 8980305320Oil separator element1 per machineEvery 500 hoursnoneQuote on request
YA00058283formerly listed as 4658521Engine oil filterFILTER;OIL2 per machineEvery 500 hoursRef 05$65.99 each
YA00058284formerly listed as YA00047054DEF supply module main filterFILTER1 per machineEvery 4,500 hoursRef 13$140.28 each
YA00075878DEF tank water supply inlet filterFILTER1 per machineEvery 4,500 hoursnone$248.98 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZX690LC-7H drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Ref 01YA00083442Full-flow filter (with O-ring)ELEMENT;FILTER2 per machine$143.42 each
Ref 14YA60050027Urea water tank water supply inlet filterKITHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machineQuote on request
Ref 14YA60085046Urea water tank water supply inlet filterKITHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machineQuote on request
Ref 518983921240formerly listed as YA00075686Alternator drive beltBELT;FAN1 per machineQuote on request
Ref 524612763Air conditioner compressor drive beltBELT;V1 per machine$73.10 each

Other Hitachi Excavators

Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.

For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
