Hitachi LANDCROS ZX50U-5N Service Parts

13 parts on Hitachi's maintenance schedule for the ZX50U-5N: filters, elements and belts with the current part number, the service interval and the quantity per machine. 13 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZX50U-5N, issued February 2024. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

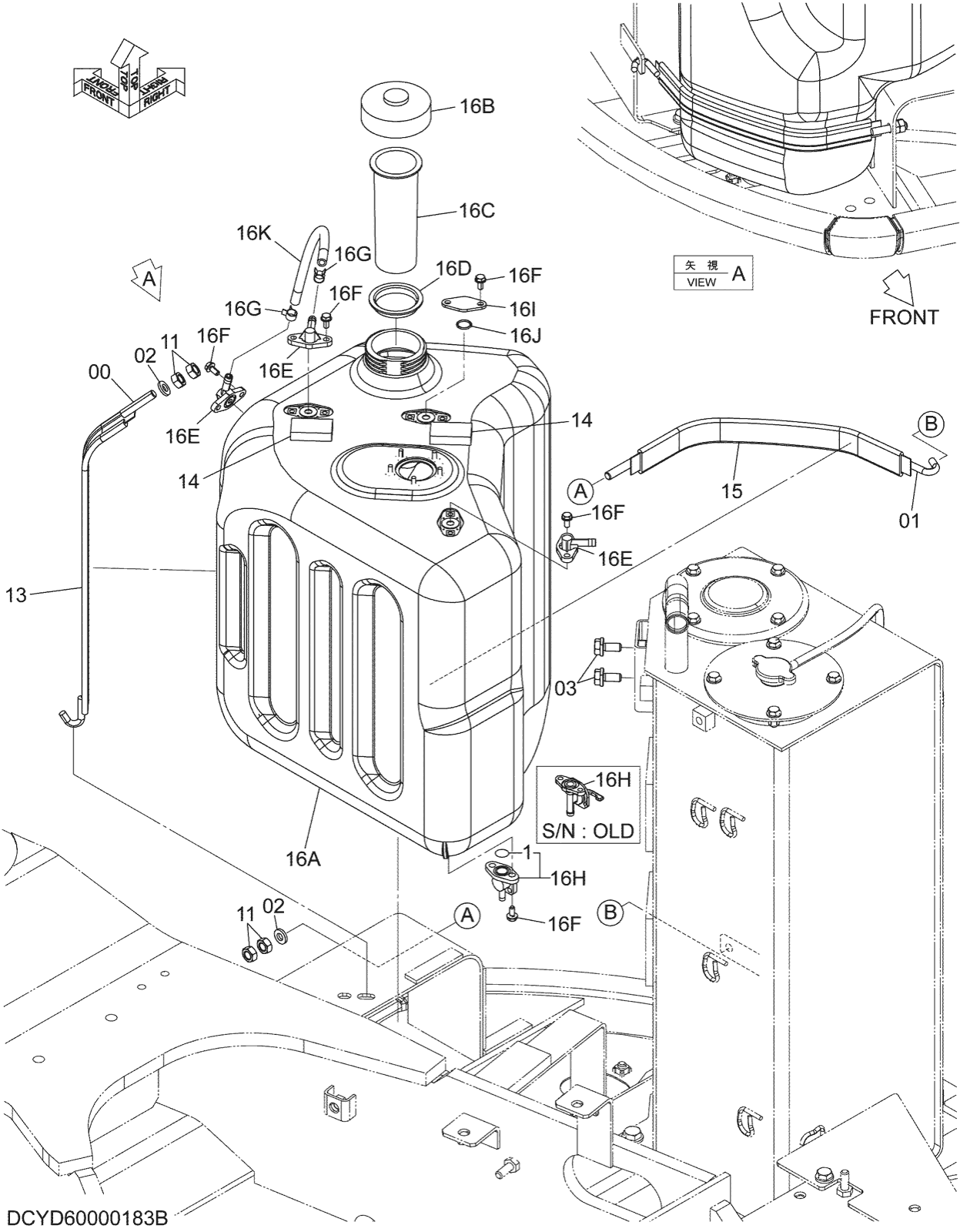

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, Fuel tank
Fig 1: Fuel tank

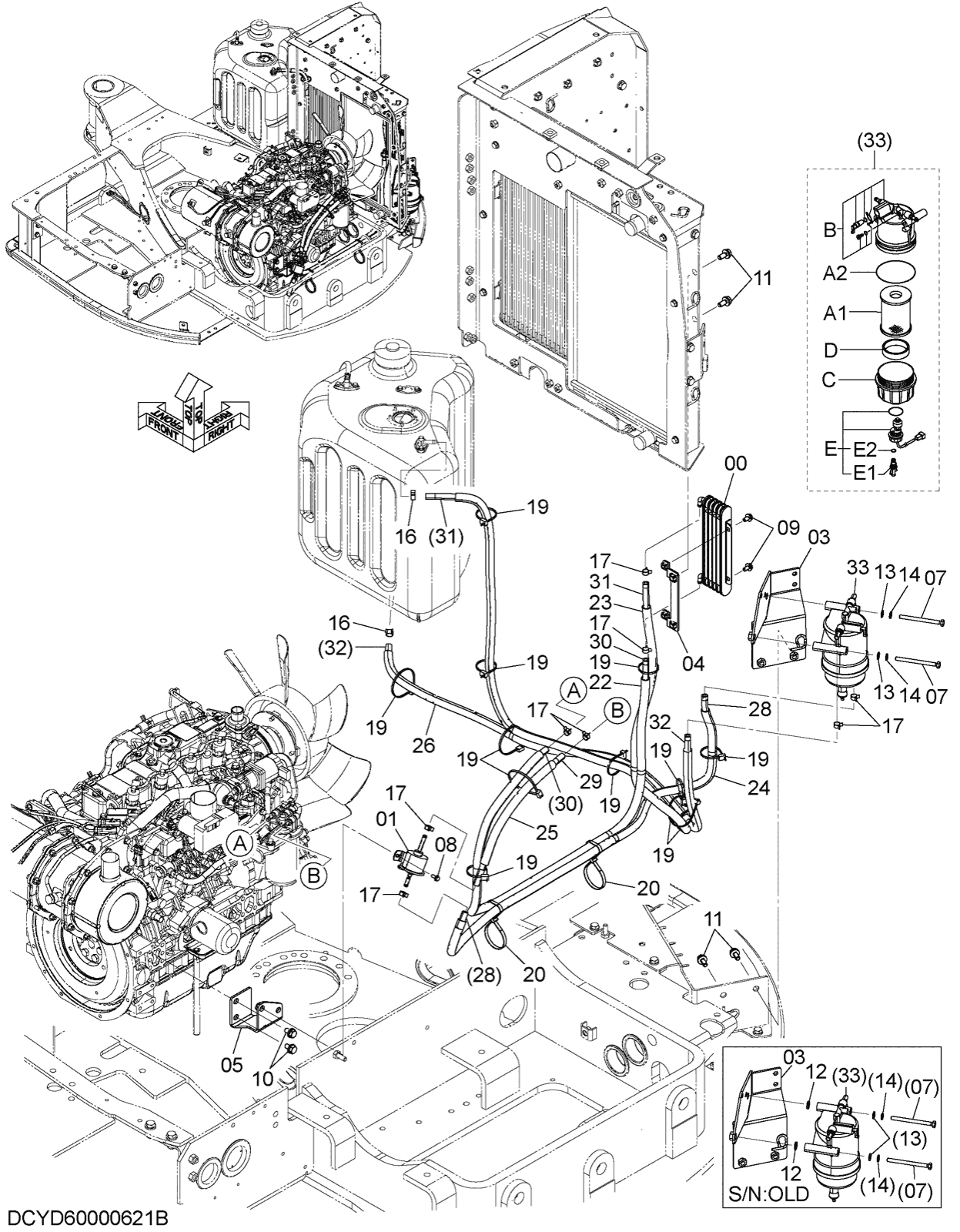

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, Fuel piping
Fig 2: Fuel piping

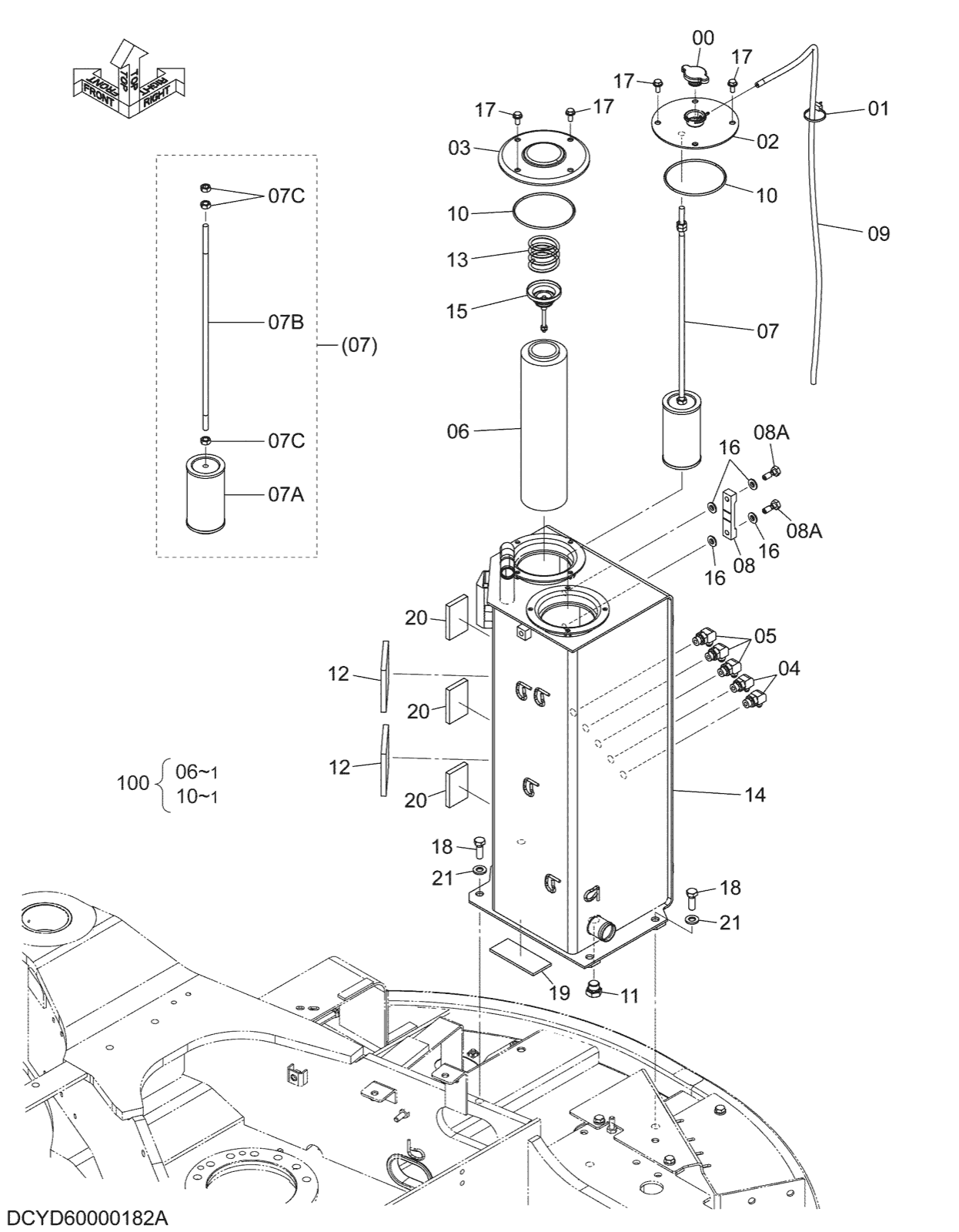

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, Oil tank
Fig 3: Oil tank

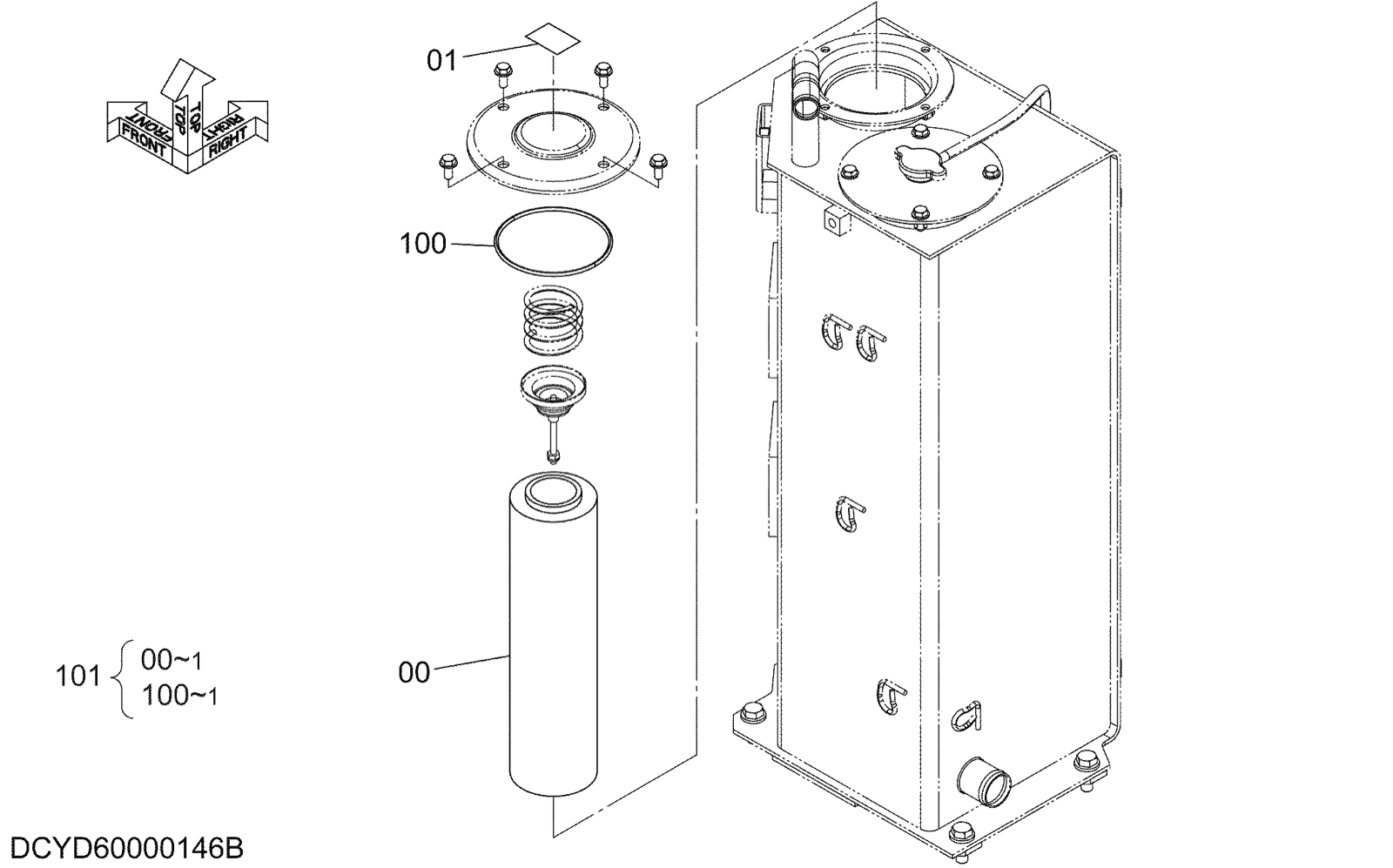

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, High precision filter
Fig 4: High precision filter

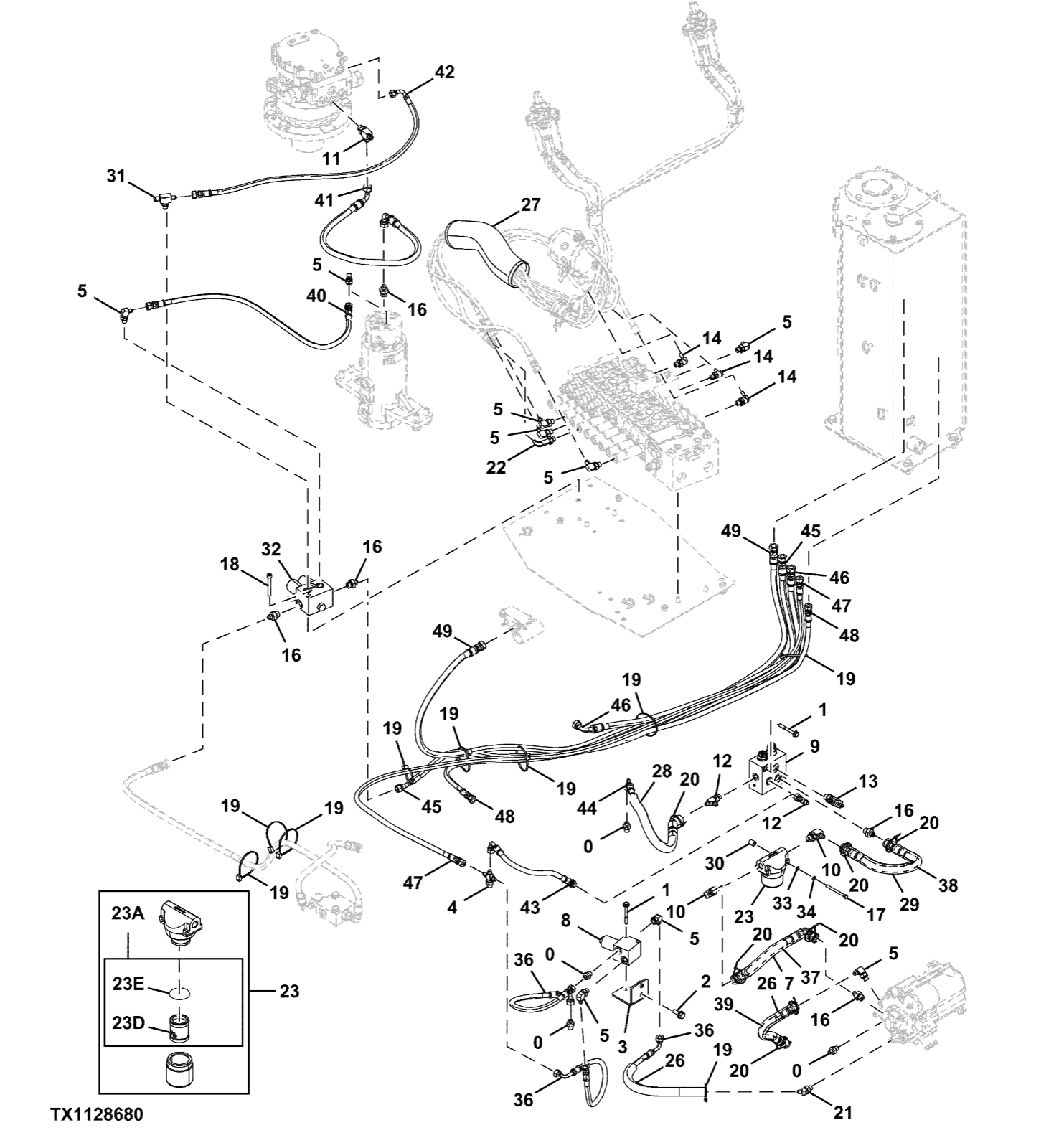

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, Control valve lines and filter (power angle blade)
Fig 5: Control valve lines and filter (power angle blade)

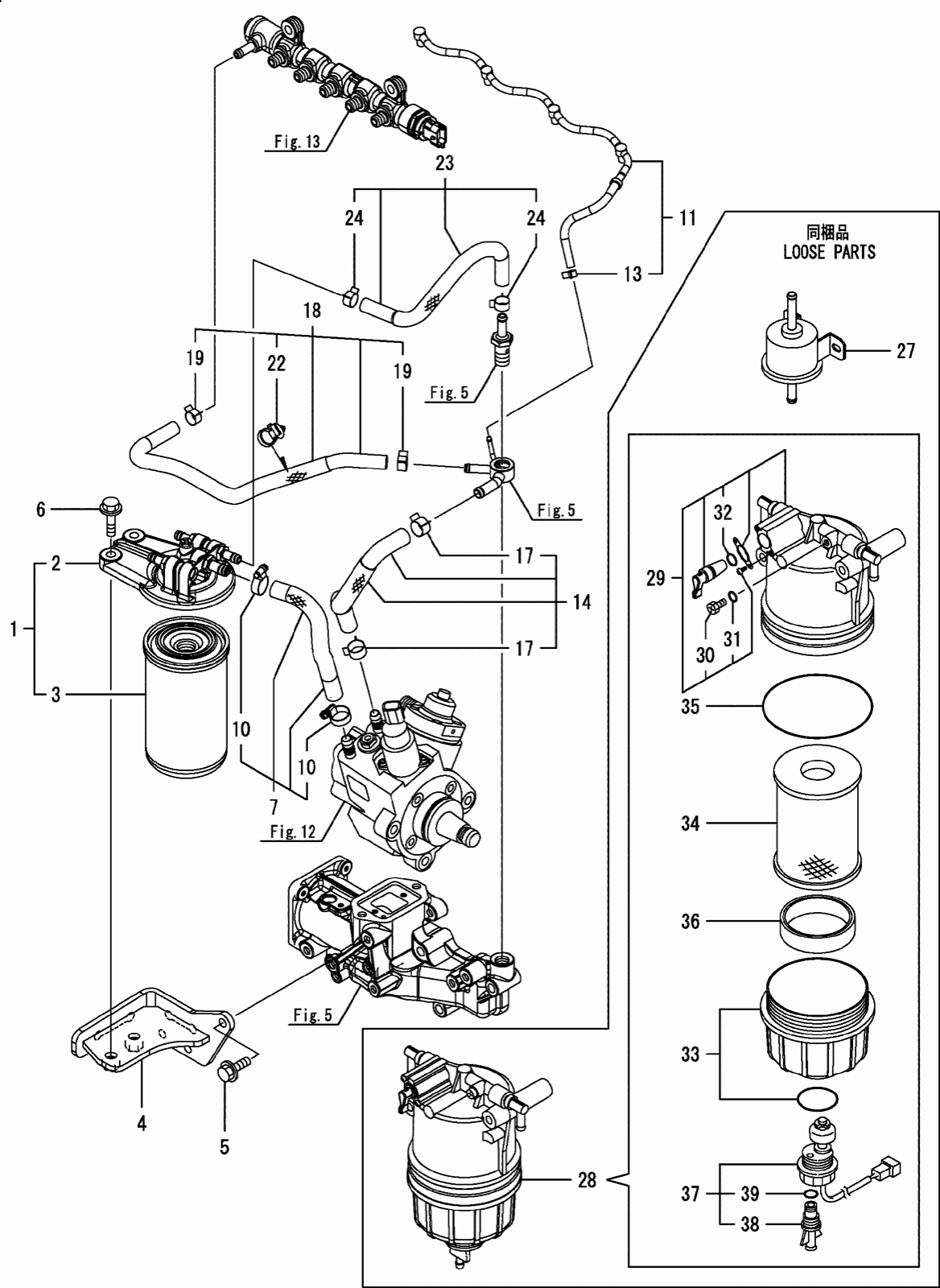

Hitachi LANDCROS ZX50U-5N periodic replacement drawing, Fuel line
Fig 6: Fuel line

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119005-35151formerly listed as 4665128Engine oil filter elementFILTER 80X100LAlso called engine oil filter1 per machineEvery 500 hoursnone$15.75 each

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YD00010789Fuel pre-filter elementELEMENT;FILTERFits up to serial 292558.1 per machineEvery 500 hoursFig 2, ref 33A$87.40 each
YNM129A00-55800formerly listed as YD00005703Final fuel filter elementFILTER, FUEL OIL1 per machineEvery 500 hoursFig 6, ref 3$57.61

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YD00000374Inner air filter elementINNER AIR1 per machineEvery 1,000 hoursnone$42.55 each
YD00001540Outer air filter elementOUTER AIR1 per machineEvery 1,000 hoursnone$62.38 each
YD00005808Air cleaner dust unloader valveVALVEAs required.none$18.49 each

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each
4617512Strainer oil tank filter (suction)STRAINER1 per machineEvery 2,000 hoursFig 3, ref 07A$59.16 each

Pilot

Pilot parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 5, ref 23A, 23D$37.69 each

Cab air

Cab air parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4673287Cab air conditioner outer filterFILTER1 per machineEvery 3,000 hoursnone$61.90 each
4684045Cab air conditioner inner filterFILTER;AIR1 per machineEvery 3,000 hoursnone$55.57 each

Belts

Belts parts on Hitachi's maintenance schedule for the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4720696Air conditioner V-beltV-BELTAs required.none$87.52 each
YD00005702Engine fan beltV-BELTAs required.none$73.12 each

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 250 hours

1 part for the ZX50U-5N 250 hour service.
Parts due at 250 hours on the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each

Due at 500 hours

4 parts for the ZX50U-5N 500 hour service.
Parts due at 500 hours on the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119005-35151formerly listed as 4665128Engine oil filter elementFILTER 80X100LAlso called engine oil filter1 per machineEvery 500 hoursnone$15.75 each
YD00010789Fuel pre-filter elementELEMENT;FILTERFits up to serial 292558.1 per machineEvery 500 hoursFig 2, ref 33A$87.40 each
YNM129A00-55800formerly listed as YD00005703Final fuel filter elementFILTER, FUEL OIL1 per machineEvery 500 hoursFig 6, ref 3$57.61
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each

Due at 1,000 hours

7 parts for the ZX50U-5N 1,000 hour service.
Parts due at 1,000 hours on the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119005-35151formerly listed as 4665128Engine oil filter elementFILTER 80X100LAlso called engine oil filter1 per machineEvery 500 hoursnone$15.75 each
YD00010789Fuel pre-filter elementELEMENT;FILTERFits up to serial 292558.1 per machineEvery 500 hoursFig 2, ref 33A$87.40 each
YNM129A00-55800formerly listed as YD00005703Final fuel filter elementFILTER, FUEL OIL1 per machineEvery 500 hoursFig 6, ref 3$57.61
YD00000374Inner air filter elementINNER AIR1 per machineEvery 1,000 hoursnone$42.55 each
YD00001540Outer air filter elementOUTER AIR1 per machineEvery 1,000 hoursnone$62.38 each
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 5, ref 23A, 23D$37.69 each

Due at 2,000 hours

8 parts for the ZX50U-5N 2,000 hour service.
Parts due at 2,000 hours on the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119005-35151formerly listed as 4665128Engine oil filter elementFILTER 80X100LAlso called engine oil filter1 per machineEvery 500 hoursnone$15.75 each
YD00010789Fuel pre-filter elementELEMENT;FILTERFits up to serial 292558.1 per machineEvery 500 hoursFig 2, ref 33A$87.40 each
YNM129A00-55800formerly listed as YD00005703Final fuel filter elementFILTER, FUEL OIL1 per machineEvery 500 hoursFig 6, ref 3$57.61
YD00000374Inner air filter elementINNER AIR1 per machineEvery 1,000 hoursnone$42.55 each
YD00001540Outer air filter elementOUTER AIR1 per machineEvery 1,000 hoursnone$62.38 each
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each
4617512Strainer oil tank filter (suction)STRAINER1 per machineEvery 2,000 hoursFig 3, ref 07A$59.16 each
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 5, ref 23A, 23D$37.69 each

Due at 3,000 hours

9 parts for the ZX50U-5N 3,000 hour service.
Parts due at 3,000 hours on the ZX50U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119005-35151formerly listed as 4665128Engine oil filter elementFILTER 80X100LAlso called engine oil filter1 per machineEvery 500 hoursnone$15.75 each
YD00010789Fuel pre-filter elementELEMENT;FILTERFits up to serial 292558.1 per machineEvery 500 hoursFig 2, ref 33A$87.40 each
YNM129A00-55800formerly listed as YD00005703Final fuel filter elementFILTER, FUEL OIL1 per machineEvery 500 hoursFig 6, ref 3$57.61
YD00000374Inner air filter elementINNER AIR1 per machineEvery 1,000 hoursnone$42.55 each
YD00001540Outer air filter elementOUTER AIR1 per machineEvery 1,000 hoursnone$62.38 each
4225846Hydraulic full-flow filter elementELEMENT, FILTER1 per machineFirst 250 hours, then every 500 hoursnone$58.36 each
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 5, ref 23A, 23D$37.69 each
4673287Cab air conditioner outer filterFILTER1 per machineEvery 3,000 hoursnone$61.90 each
4684045Cab air conditioner inner filterFILTER;AIR1 per machineEvery 3,000 hoursnone$55.57 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZX50U-5N drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Fig 1, ref 00YD40000246BELT1 per machineQuote on request
Fig 1, ref 01YD40000247BELT1 per machineQuote on request
Fig 1, ref 16C4472918formerly listed as 4442449FILTER1 per machine$36.95
Fig 2, ref 28, 33YD00005698FILTER;FUELFits up to serial 292558.1 per machineQuote on request
Fig 2, ref 28, 33YNM129E20-55701formerly listed as YD00013370FILTER;FUELFits from serial 292559.1 per machine$223.40
Fig 2, ref 30BYA00039473CASE;FILTER1 per machineQuote on request
Fig 2, ref 30YD00015367FILTER;FUEL1 per machineQuote on request
Fig 2, ref 33, 33CYD00009172formerly listed as YNM129C20-55720CASE;FILTERFits up to serial 292558.1 per machineQuote on request
Fig 2, ref 100YD00015366Fuel filter (pre)FILTER;FUEL1 per machine$161.11 each
Fig 3, ref 064129280Full-flow filterELEMENT;FILTER1 per machine$33.21 each
Fig 3, ref 100YD00012034Filter element (with O-ring)ELEMENT;FILTER1 per machine$97.43
Fig 4, ref 00, 101YD00011970formerly listed as YD00003087Filter element (with O-ring)ELEMENT;FILTERHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machine$47.58 each
Fig 5, ref 234457683Pilot oilFilter1 per machine$50.25 each
Fig 6, ref 1YNM129C20-55600FILTER ASSY, FOHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machineQuote on request
Fig 6, ref 33A1, 34YNM129A00-55730formerly listed as YD00002532ELEMENTFits up to serial 292558.1 per machine$53.03 each
