Hitachi LANDCROS ZX135US-7H Service Parts
14 parts on Hitachi's maintenance schedule for the ZX135US-7H: filters and elements with the current part number, the service interval and the quantity per machine. 13 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.
Intervals: Hitachi's maintenance schedule for the ZX135US-7H, issued February 2025. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.
Pick list0
Engine oil
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each | |
| 8982999420formerly listed as YA00045915 | Oil separator elementFILTER | 1 per machine | Every 2,500 hours | Ref 14 | $36.48 each |
Fuel
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00029016 | Fuel filter element (automatic refueling device)CARTRIDGE;FILTE | 1 per machine | Every 1,000 hours | none | $168.88 each | |
| YA00086177formerly listed as 8983129180 and YA00033486 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $97.83 |
Air intake
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4486002 | Air cleaner element (outer)ELEMENT;FILTER | 1 per machine | Clean every 250 hours. Replace after 6 cleanings or once a year. | Ref 08 | $56.72 each | |
| 4486014 | Air cleaner element (inner)ELEMENT | 1 per machine | Replace with the outer element. | Ref 09 | $32.74 each |
Hydraulic
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4450002 | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 01 | $164.18 each | |
| 4437838 | Hydraulic air breather elementELEMENT | 1 per machine | Every 5,000 hours | Ref 02 | $29.80 each |
Pilot
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4630525 | Pilot oil filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |
Cab air
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00022308formerly listed as YA00032683 | Air conditioner fresh air filterFILTER;AIR | 1 per machine | Clean every 500 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings. | Ref 11 | $75.47 each | |
| YA00074889 | Air conditioner circulating air filterELEMENT;FILTER | 1 per machine | Clean every 500 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings. | Ref 10 | Quote on request |
DEF
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 8983507161 | DEF supply module main filterFILTER KIT; PUM | 1 per machine | Every 4,000 hours | none | $212.65 each | |
| YA00075878 | DEF tank water supply inlet filterFILTER | 1 per machine | Every 4,000 hours | none | $248.98 each |
Parts Due at Each Service
Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.
Due at 500 hours
1 part for the ZX135US-7H 500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each |
Due at 1,000 hours
6 parts for the ZX135US-7H 1,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00029016 | Fuel filter element (automatic refueling device)CARTRIDGE;FILTE | 1 per machine | Every 1,000 hours | none | $168.88 each | |
| YA00086177formerly listed as 8983129180 and YA00033486 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $97.83 | |
| 4450002 | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 01 | $164.18 each | |
| 4630525 | Pilot oil filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |
Due at 2,500 hours
2 parts for the ZX135US-7H 2,500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each | |
| 8982999420formerly listed as YA00045915 | Oil separator elementFILTER | 1 per machine | Every 2,500 hours | Ref 14 | $36.48 each |
Due at 4,000 hours
8 parts for the ZX135US-7H 4,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00029016 | Fuel filter element (automatic refueling device)CARTRIDGE;FILTE | 1 per machine | Every 1,000 hours | none | $168.88 each | |
| YA00086177formerly listed as 8983129180 and YA00033486 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $97.83 | |
| 4450002 | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 01 | $164.18 each | |
| 4630525 | Pilot oil filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each | |
| 8983507161 | DEF supply module main filterFILTER KIT; PUM | 1 per machine | Every 4,000 hours | none | $212.65 each | |
| YA00075878 | DEF tank water supply inlet filterFILTER | 1 per machine | Every 4,000 hours | none | $248.98 each |
Due at 5,000 hours
8 parts for the ZX135US-7H 5,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058283formerly listed as 4658521 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $65.99 each | |
| 8982999420formerly listed as YA00045915 | Oil separator elementFILTER | 1 per machine | Every 2,500 hours | Ref 14 | $36.48 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00029016 | Fuel filter element (automatic refueling device)CARTRIDGE;FILTE | 1 per machine | Every 1,000 hours | none | $168.88 each | |
| YA00086177formerly listed as 8983129180 and YA00033486 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $97.83 | |
| 4450002 | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 01 | $164.18 each | |
| 4437838 | Hydraulic air breather elementELEMENT | 1 per machine | Every 5,000 hours | Ref 02 | $29.80 each | |
| 4630525 | Pilot oil filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |

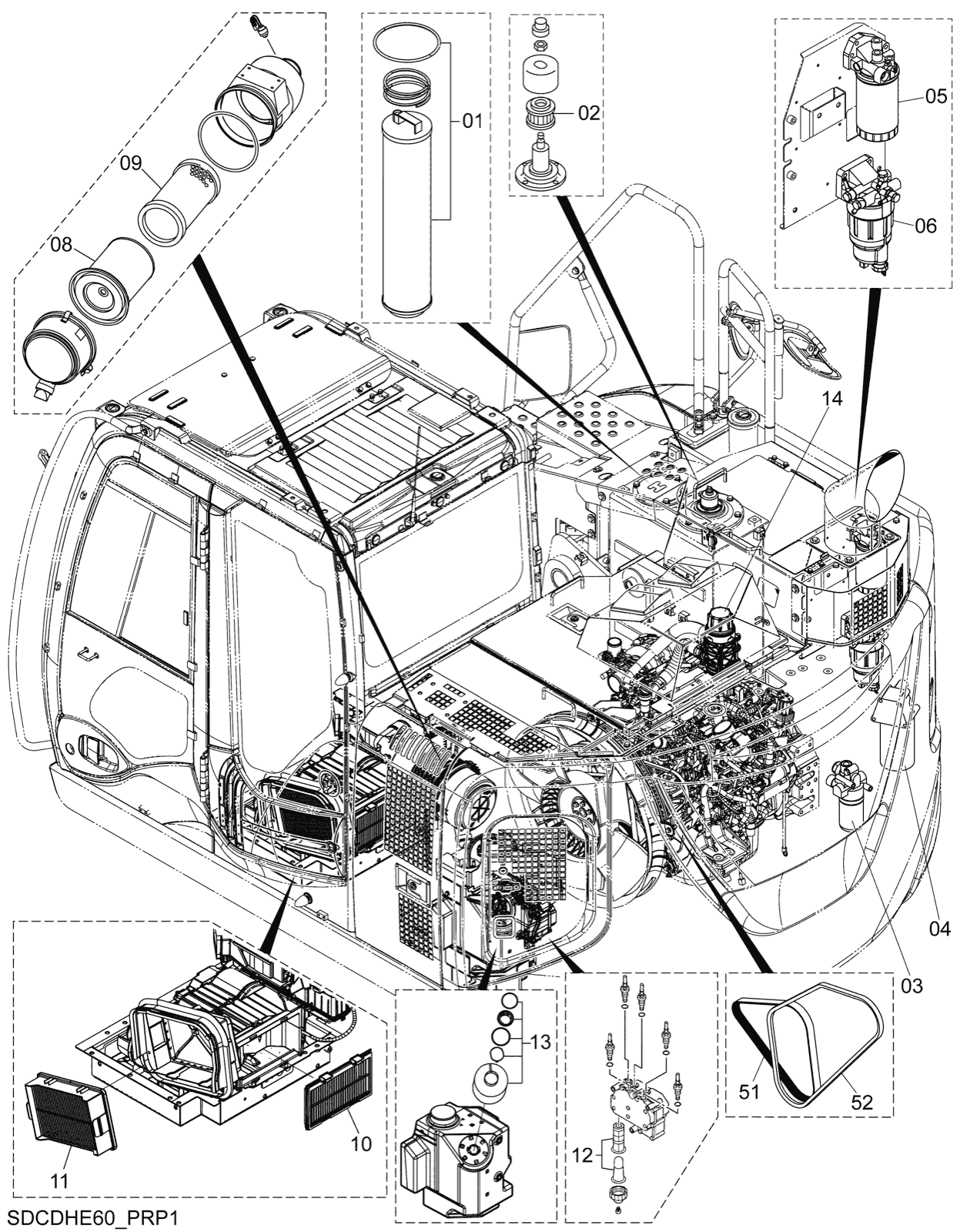

Also on these drawings
Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.
| Ref | Part number | Description | Qty per machine | Price | Add to pick list |
|---|---|---|---|---|---|
| Ref 10 | YA00054032 | Air conditioner circulating air filterFILTER | 1 per machine | $82.28 each | |
| Ref 12 | YA00058284formerly listed as YA00033443 and YA00047054 | Urea water supply module main filterFILTER | 1 per machine | $140.28 each | |
| Ref 13 | YA60085046 | Urea water tank water supply inlet filterKITHitachi no longer recommends ordering this number. The parts counter will confirm the current one. | 1 per machine | Quote on request | |
| Ref 51 | 8980388560formerly listed as 4668374 | Engine fan beltBELT;FAN | 1 per machine | $42.91 each | |
| Ref 52 | 4686087 | Air conditioner compressor beltBELT;V | 1 per machine | $63.56 each |
Other Hitachi Excavators
Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.
For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
