Hitachi LANDCROS ZX17U-5N Service Parts

9 parts on Hitachi's maintenance schedule for the ZX17U-5N: filters, elements and belts with the current part number, the service interval and the quantity per machine. 7 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZX17U-5N, issued September 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

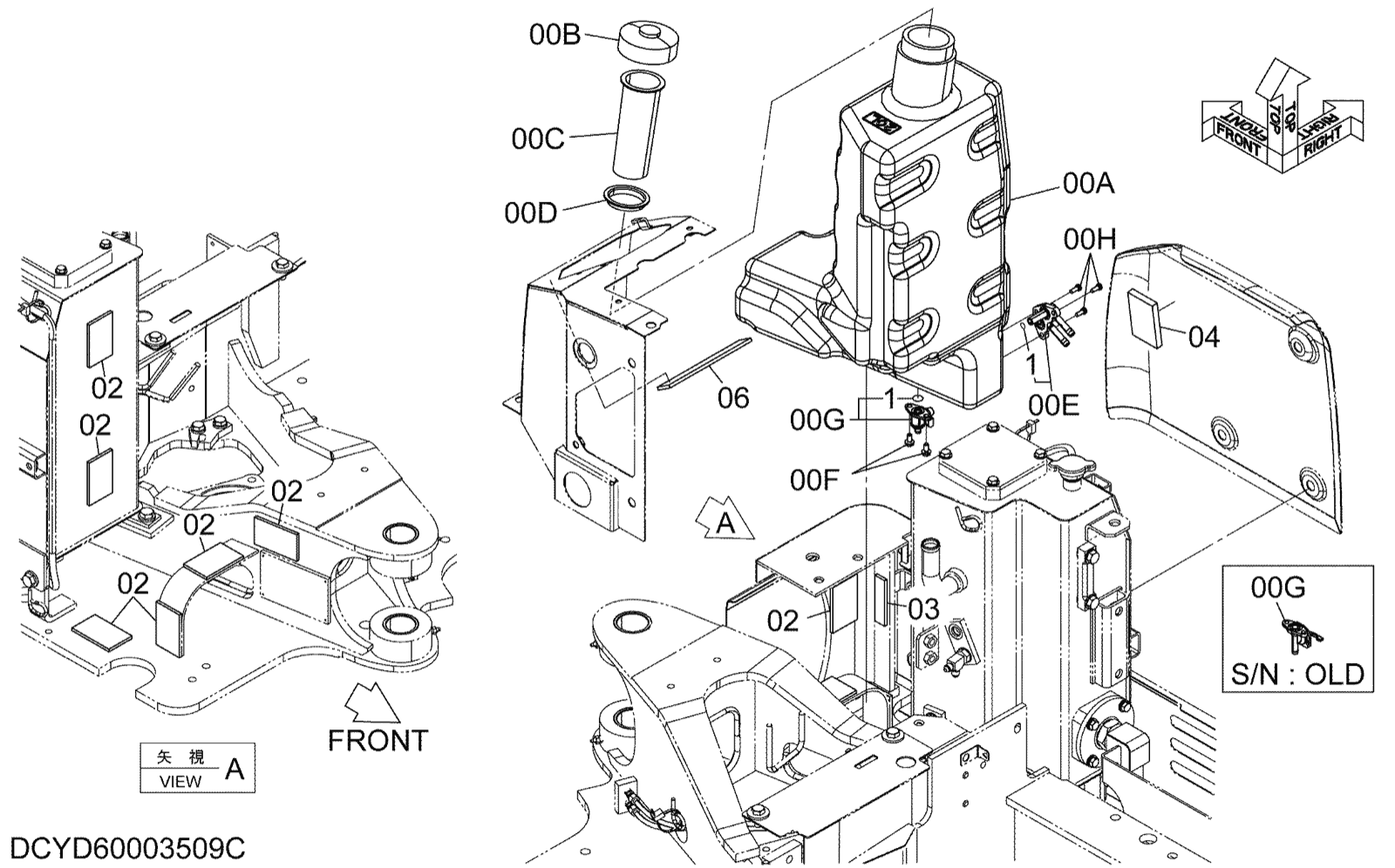

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Fuel tank
Fig 1: Fuel tank

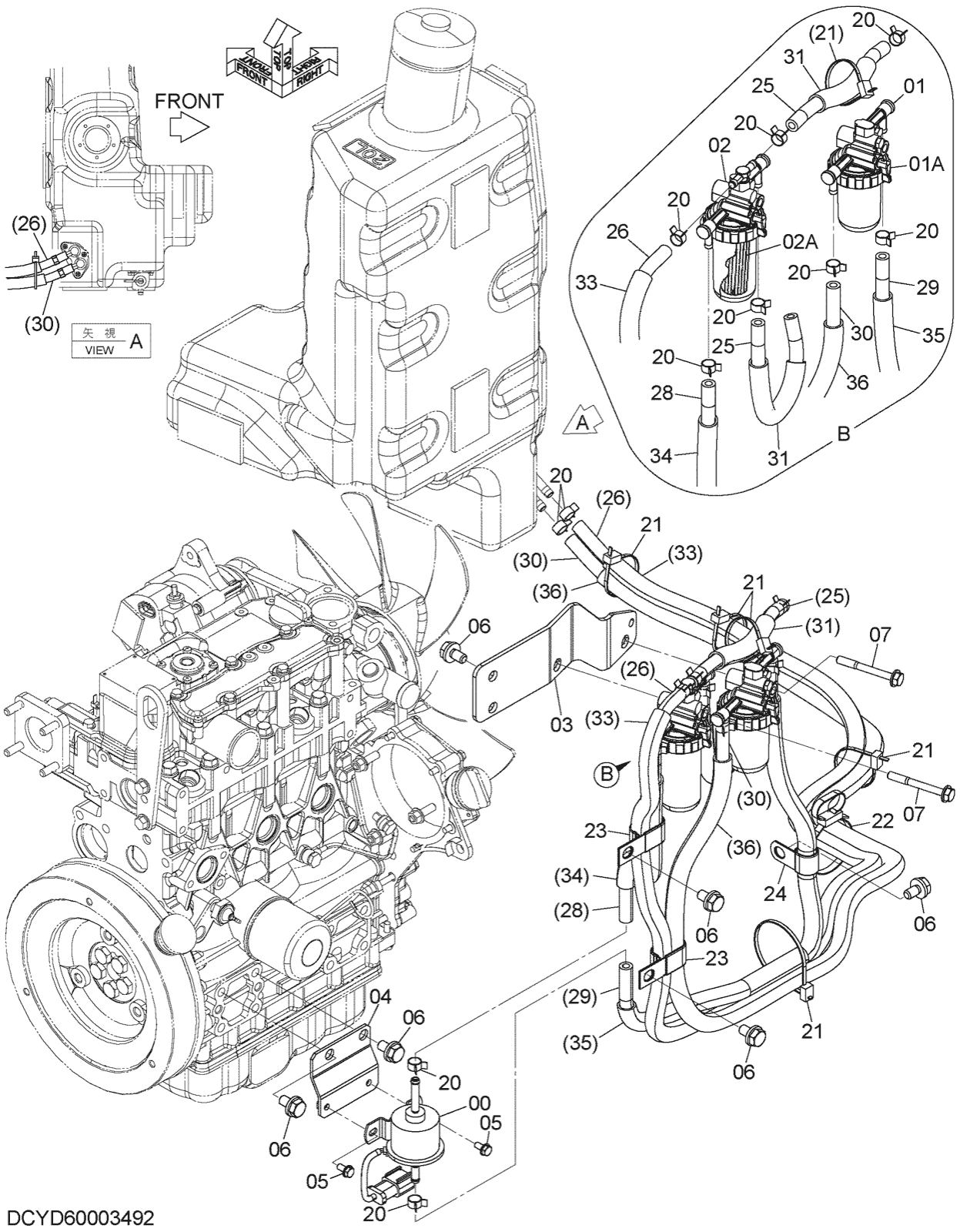

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Fuel piping
Fig 2: Fuel piping

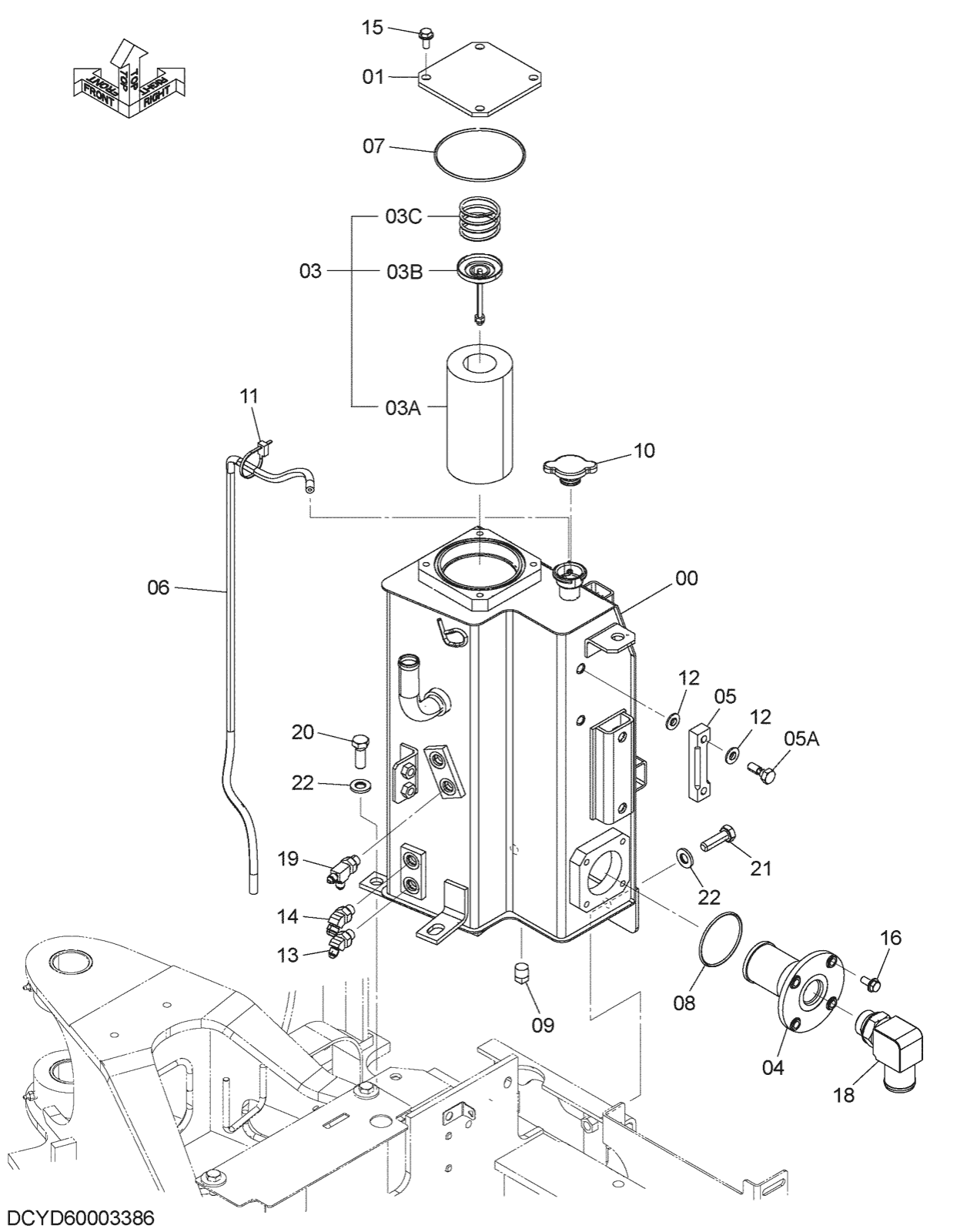

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Oil tank
Fig 3: Oil tank

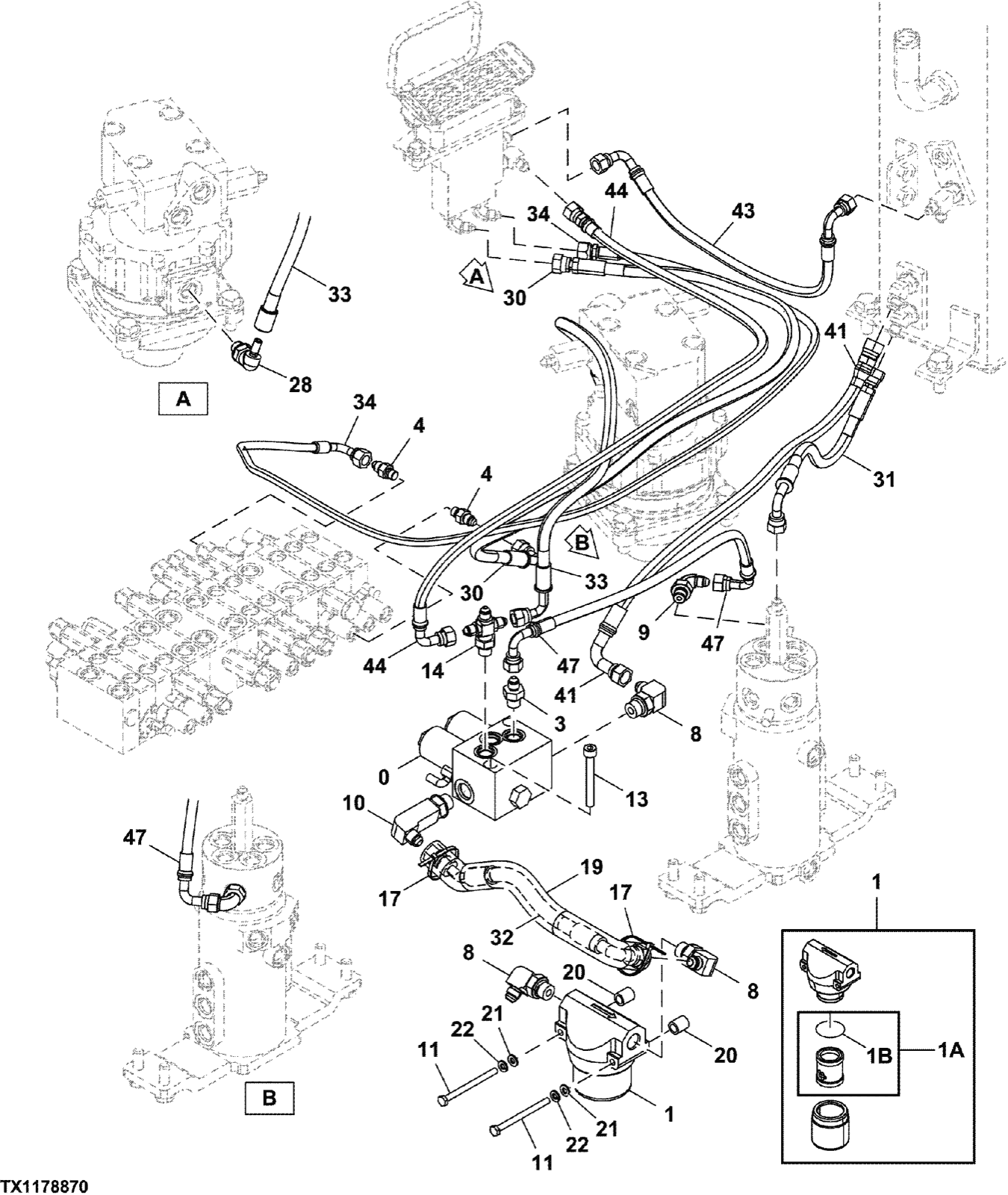

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Pilot lines, filter, and bypass valve
Fig 4: Pilot lines, filter, and bypass valve

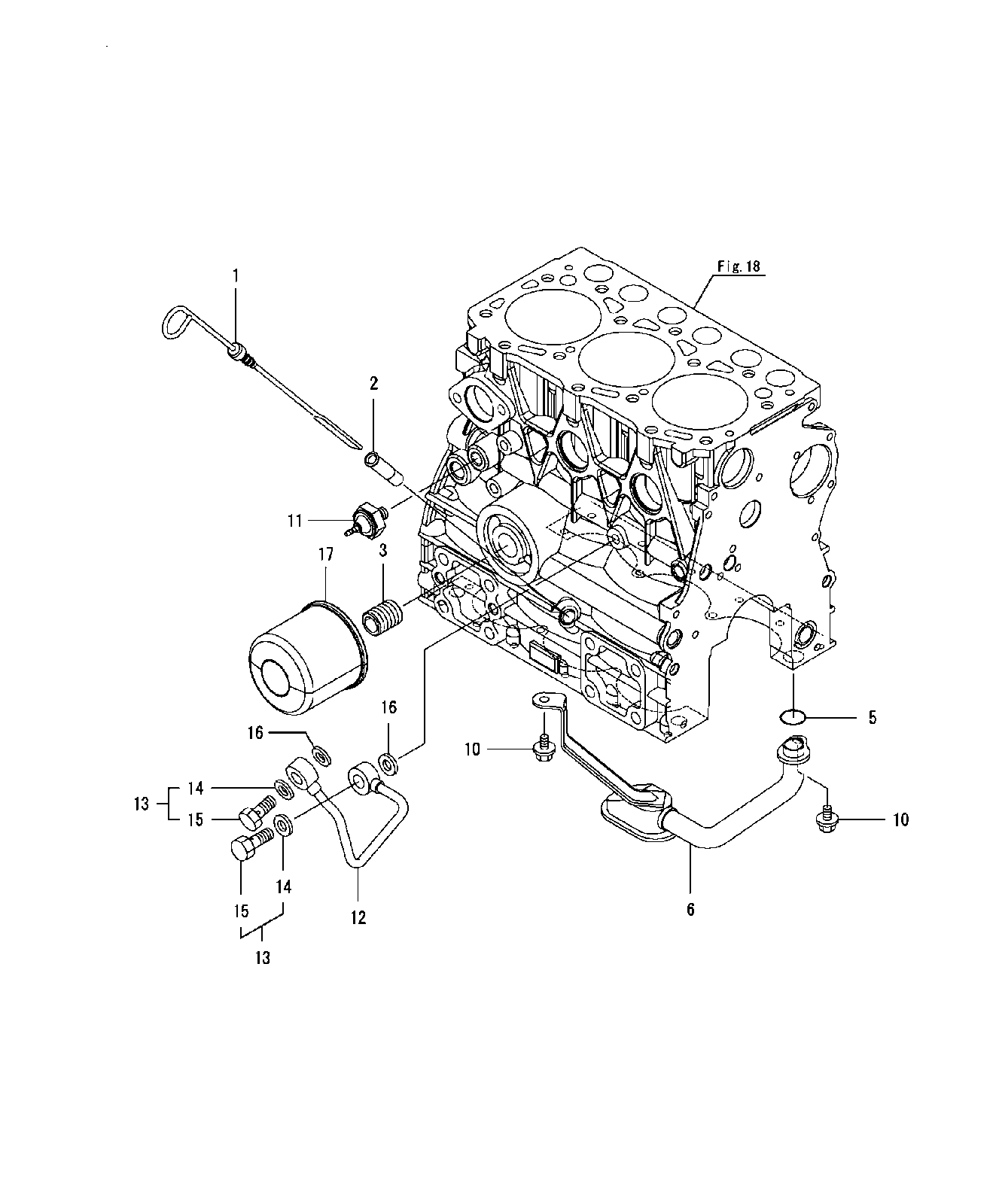

Hitachi LANDCROS ZX17U-5N periodic replacement drawing, Lub. oil system
Fig 5: Lub. oil system

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289Engine oil filter elementFILTER ASSY, D68XL651 per machineEvery 250 hoursFig 5, ref 17$12.38

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119833-55650formerly listed as YD00009610Fuel filter elementELEMENT;FILTER1 per machineEvery 500 hoursFig 2, ref 02A, 6$26.54 each

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4383875Engine air filter elementFILTER, AIR(OUT1 per machineEvery 1,000 hoursnone$54.72 each
4383877Air cleaner dust unloader valveAs required.noneQuote on request

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4692230formerly listed as 4442446 and 4454705Hydraulic tank oil filter elementFILTER;RETURN1 per machineFirst 250 hours, then every 500 hoursFig 3, ref 03, 03A$47.78 each
4616113Strainer oil tank filler (suction)FILTER, SUCTION1 per machineEvery 2,000 hoursnone$110.94 each

Pilot

Pilot parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 4, ref 1A$37.69 each

Belts

Belts parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119740-42370formerly listed as 4664734Engine fan beltBELT,V,A35.5As required.none$23.28 each

Other

Other parts on Hitachi's maintenance schedule for the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119515-11310Engine rocker arm cover gasketAs required.noneQuote on request

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 250 hours

2 parts for the ZX17U-5N 250 hour service.
Parts due at 250 hours on the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289Engine oil filter elementFILTER ASSY, D68XL651 per machineEvery 250 hoursFig 5, ref 17$12.38
4692230formerly listed as 4442446 and 4454705Hydraulic tank oil filter elementFILTER;RETURN1 per machineFirst 250 hours, then every 500 hoursFig 3, ref 03, 03A$47.78 each

Due at 500 hours

3 parts for the ZX17U-5N 500 hour service.
Parts due at 500 hours on the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289Engine oil filter elementFILTER ASSY, D68XL651 per machineEvery 250 hoursFig 5, ref 17$12.38
YNM119833-55650formerly listed as YD00009610Fuel filter elementELEMENT;FILTER1 per machineEvery 500 hoursFig 2, ref 02A, 6$26.54 each
4692230formerly listed as 4442446 and 4454705Hydraulic tank oil filter elementFILTER;RETURN1 per machineFirst 250 hours, then every 500 hoursFig 3, ref 03, 03A$47.78 each

Due at 1,000 hours

5 parts for the ZX17U-5N 1,000 hour service.
Parts due at 1,000 hours on the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289Engine oil filter elementFILTER ASSY, D68XL651 per machineEvery 250 hoursFig 5, ref 17$12.38
YNM119833-55650formerly listed as YD00009610Fuel filter elementELEMENT;FILTER1 per machineEvery 500 hoursFig 2, ref 02A, 6$26.54 each
4383875Engine air filter elementFILTER, AIR(OUT1 per machineEvery 1,000 hoursnone$54.72 each
4692230formerly listed as 4442446 and 4454705Hydraulic tank oil filter elementFILTER;RETURN1 per machineFirst 250 hours, then every 500 hoursFig 3, ref 03, 03A$47.78 each
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 4, ref 1A$37.69 each

Due at 2,000 hours

6 parts for the ZX17U-5N 2,000 hour service.
Parts due at 2,000 hours on the ZX17U-5N
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YNM119305-35151formerly listed as 4661289Engine oil filter elementFILTER ASSY, D68XL651 per machineEvery 250 hoursFig 5, ref 17$12.38
YNM119833-55650formerly listed as YD00009610Fuel filter elementELEMENT;FILTER1 per machineEvery 500 hoursFig 2, ref 02A, 6$26.54 each
4383875Engine air filter elementFILTER, AIR(OUT1 per machineEvery 1,000 hoursnone$54.72 each
4692230formerly listed as 4442446 and 4454705Hydraulic tank oil filter elementFILTER;RETURN1 per machineFirst 250 hours, then every 500 hoursFig 3, ref 03, 03A$47.78 each
4616113Strainer oil tank filler (suction)FILTER, SUCTION1 per machineEvery 2,000 hoursnone$110.94 each
YD00011691formerly listed as 4294130Pilot system oil filter elementFilter Element1 per machineEvery 1,000 hoursFig 4, ref 1A$37.69 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZX17U-5N drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Fig 1, ref 00C, 0C4472918formerly listed as 4442449FILTER1 per machine$36.95
Fig 1, ref 00E, 0E4608250STRAINER1 per machineQuote on request
Fig 2, ref 01A, 19YNM129335-55780formerly listed as YD00009611ELEMENT;FILTER1 per machine$14.46 each
Fig 2, ref 02, 3YNM119833-55630formerly listed as 4664737FILTER;FUEL1 per machineQuote on request
Fig 3, ref 044479355FILTER;SUCTIONHitachi no longer recommends ordering this number. The parts counter will confirm the current one.1 per machineQuote on request
Fig 4, ref 14457683Pilot oilFilter1 per machine$50.25 each
