Hitachi LANDCROS ZX35U-5N Service Parts
13 parts on Hitachi's maintenance schedule for the ZX35U-5N: filters, elements and belts with the current part number, the service interval and the quantity per machine. 12 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.
Intervals: Hitachi's maintenance schedule for the ZX35U-5N, issued September 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.
Pick list0
Engine oil
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119005-35151formerly listed as 4665128 | Engine oil filter elementFILTER 80X100LAlso called engine oil filter | 1 per machine | Every 500 hours | none | $15.75 each |
Fuel
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119802-55801formerly listed as 4668930 | Final fuel filter elementFILTER;FUEL | 1 per machine | Every 500 hours | none | $20.74 each |
Air intake
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YD00000374 | Air cleaner inner filterINNER AIR | 1 per machine | Every 1,000 hours | none | $42.55 each | |
| YD00001540 | Air cleaner outer filterOUTER AIR | 1 per machine | Every 1,000 hours | none | $62.38 each | |
| YD00005808 | Air cleaner dust unloader valveVALVE | As required. | none | $18.49 each |
Hydraulic
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each | |

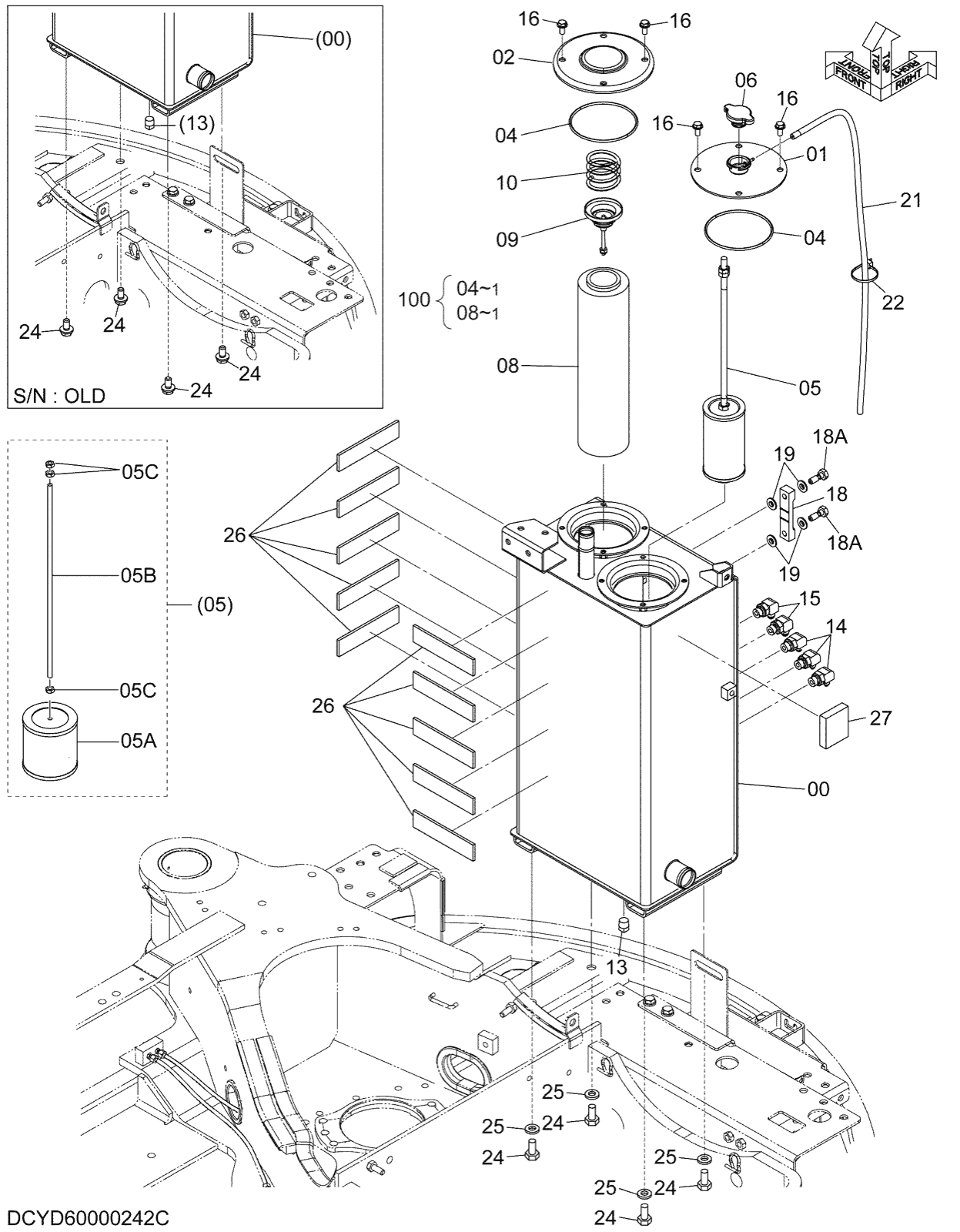

| 4617512 | Strainer oil tank filter (suction)STRAINER | 1 per machine | Every 2,000 hours | Fig 2, ref 05A | $59.16 each |
Pilot
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|

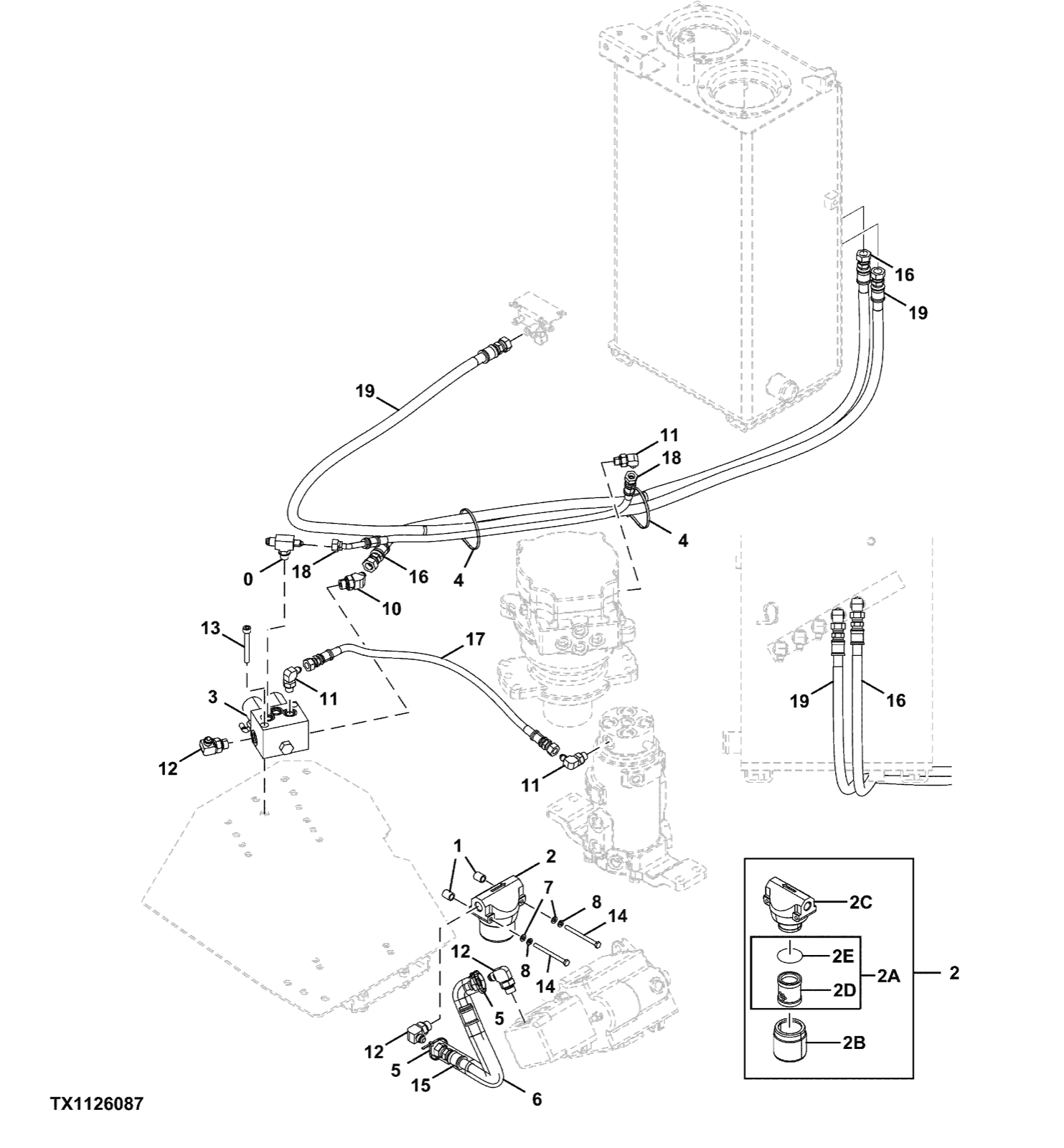

| YD00011691formerly listed as 4294130 | Pilot system oil filter elementFilter Element | 1 per machine | Every 1,000 hours | Fig 3, ref 2A, 2D, 47A, 47D | $37.69 each |
Cab air
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4673287 | Cab air conditioner outer filterFILTER | 1 per machine | Every 3,000 hours | none | $61.90 each | |
| 4684045 | Cab air conditioner inner filterFILTER;AIR | 1 per machine | Every 3,000 hours | none | $55.57 each |
Belts
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4720696 | Air conditioner V-beltV-BELT | As required. | none | $87.52 each | ||
| YD00000601 | Engine fan beltBELT, FAN | As required. | none | $36.78 each |
Other
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119718-11310 | Engine rocker arm cover gasket | As required. | none | Quote on request |
Parts Due at Each Service
Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.
Due at 250 hours
1 part for the ZX35U-5N 250 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each |
Due at 500 hours
3 parts for the ZX35U-5N 500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119005-35151formerly listed as 4665128 | Engine oil filter elementFILTER 80X100LAlso called engine oil filter | 1 per machine | Every 500 hours | none | $15.75 each | |
| YNM119802-55801formerly listed as 4668930 | Final fuel filter elementFILTER;FUEL | 1 per machine | Every 500 hours | none | $20.74 each | |
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each |
Due at 1,000 hours
6 parts for the ZX35U-5N 1,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119005-35151formerly listed as 4665128 | Engine oil filter elementFILTER 80X100LAlso called engine oil filter | 1 per machine | Every 500 hours | none | $15.75 each | |
| YNM119802-55801formerly listed as 4668930 | Final fuel filter elementFILTER;FUEL | 1 per machine | Every 500 hours | none | $20.74 each | |
| YD00000374 | Air cleaner inner filterINNER AIR | 1 per machine | Every 1,000 hours | none | $42.55 each | |
| YD00001540 | Air cleaner outer filterOUTER AIR | 1 per machine | Every 1,000 hours | none | $62.38 each | |
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each | |
| YD00011691formerly listed as 4294130 | Pilot system oil filter elementFilter Element | 1 per machine | Every 1,000 hours | Fig 3, ref 2A, 2D, 47A, 47D | $37.69 each |
Due at 2,000 hours
7 parts for the ZX35U-5N 2,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119005-35151formerly listed as 4665128 | Engine oil filter elementFILTER 80X100LAlso called engine oil filter | 1 per machine | Every 500 hours | none | $15.75 each | |
| YNM119802-55801formerly listed as 4668930 | Final fuel filter elementFILTER;FUEL | 1 per machine | Every 500 hours | none | $20.74 each | |
| YD00000374 | Air cleaner inner filterINNER AIR | 1 per machine | Every 1,000 hours | none | $42.55 each | |
| YD00001540 | Air cleaner outer filterOUTER AIR | 1 per machine | Every 1,000 hours | none | $62.38 each | |
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each | |
| 4617512 | Strainer oil tank filter (suction)STRAINER | 1 per machine | Every 2,000 hours | Fig 2, ref 05A | $59.16 each | |
| YD00011691formerly listed as 4294130 | Pilot system oil filter elementFilter Element | 1 per machine | Every 1,000 hours | Fig 3, ref 2A, 2D, 47A, 47D | $37.69 each |
Due at 3,000 hours
8 parts for the ZX35U-5N 3,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YNM119005-35151formerly listed as 4665128 | Engine oil filter elementFILTER 80X100LAlso called engine oil filter | 1 per machine | Every 500 hours | none | $15.75 each | |
| YNM119802-55801formerly listed as 4668930 | Final fuel filter elementFILTER;FUEL | 1 per machine | Every 500 hours | none | $20.74 each | |
| YD00000374 | Air cleaner inner filterINNER AIR | 1 per machine | Every 1,000 hours | none | $42.55 each | |
| YD00001540 | Air cleaner outer filterOUTER AIR | 1 per machine | Every 1,000 hours | none | $62.38 each | |
| 4225846 | Hydraulic full-flow filter elementELEMENT, FILTER | 1 per machine | First 250 hours, then every 500 hours | none | $58.36 each | |
| YD00011691formerly listed as 4294130 | Pilot system oil filter elementFilter Element | 1 per machine | Every 1,000 hours | Fig 3, ref 2A, 2D, 47A, 47D | $37.69 each | |
| 4673287 | Cab air conditioner outer filterFILTER | 1 per machine | Every 3,000 hours | none | $61.90 each | |
| 4684045 | Cab air conditioner inner filterFILTER;AIR | 1 per machine | Every 3,000 hours | none | $55.57 each |
Also on these drawings
Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.
| Ref | Part number | Description | Qty per machine | Price | Add to pick list |
|---|---|---|---|---|---|
| Fig 1, ref 01C, 1C | 4472918formerly listed as 4442449 | FILTER | 1 per machine | $36.95 | |
| Fig 2, ref 05 | YD00000766 | FILTER;SUCTIONHitachi no longer recommends ordering this number. The parts counter will confirm the current one. | 1 per machine | Quote on request | |
| Fig 2, ref 08 | 4129280 | Full-flow filterELEMENT;FILTER | 1 per machine | $33.21 each | |
| Fig 2, ref 08, 100 | YD00012034 | Filter element (with O-ring)ELEMENT;FILTER | 1 per machine | $97.43 | |
| Fig 3, ref 2, 47 | 4457683 | Pilot oilFilter | 1 per machine | $50.25 each | |
| Fig 4, ref 3 | DY119802-55801formerly listed as YNM129004-55801 | FILTER | 1 per machine | Quote on request | |
| Fig 4, ref 14 | YNM129242-55730 | ELEMENT | 1 per machine | $13.22 each |
Other Hitachi Excavators
Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.
For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
