Hitachi LANDCROS ZX190LC-7H Service Parts
14 parts on Hitachi's maintenance schedule for the ZX190LC-7H: filters and elements with the current part number, the service interval and the quantity per machine. 12 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

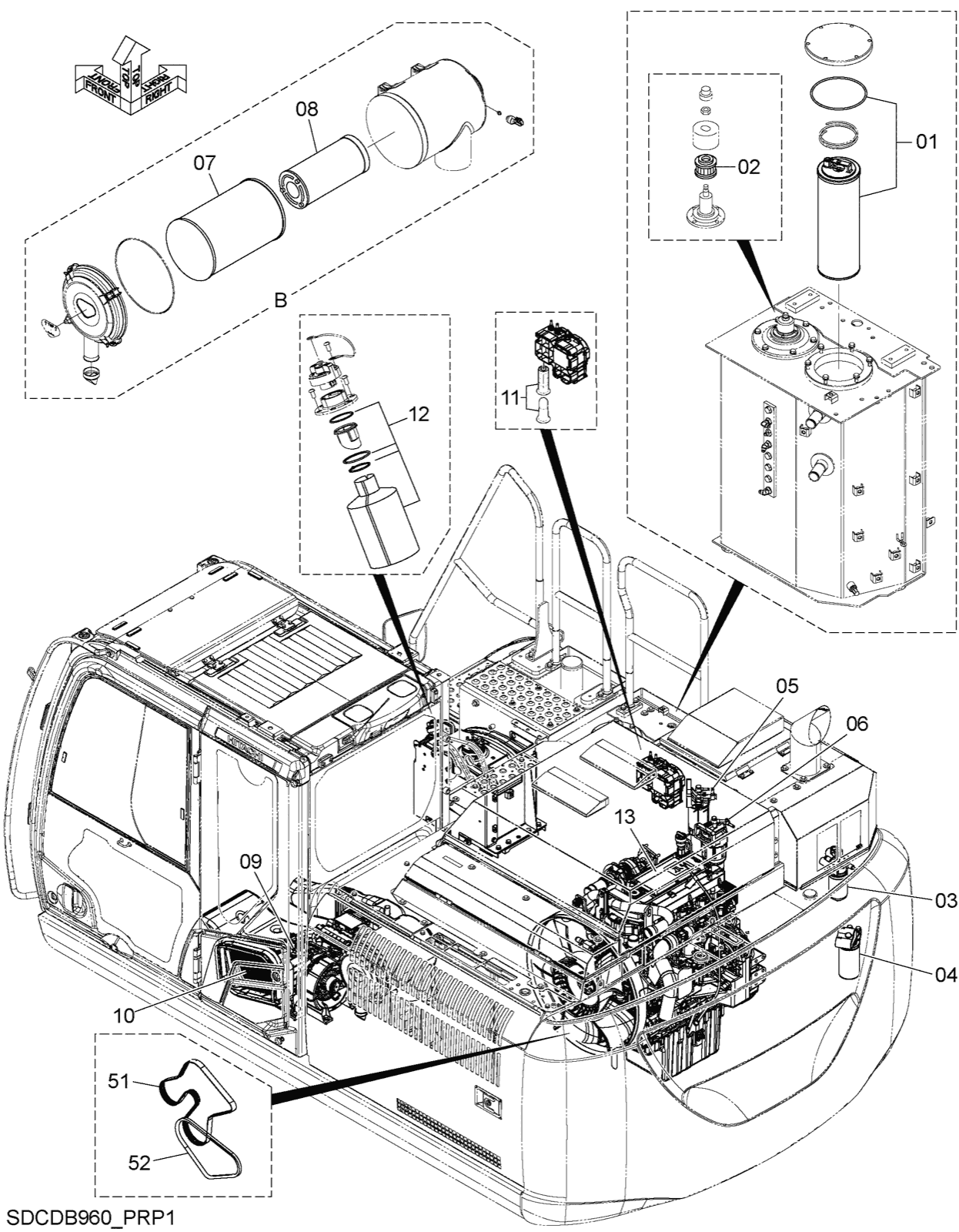

Intervals: Hitachi's maintenance schedule for the ZX190LC-7H, issued September 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.
Pick list0
Engine oil
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each | |
| YNM129G01-03020formerly listed as YA00077043 | Oil separator elementELEMENT;FILTER | 1 per machine | Every 4,500 hours | Ref 13 | Quote on request |
Fuel
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00034622 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $153.78 each |
Air intake
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4286128 | Air cleaner element (outer)ELEMENT;FILTER | 1 per machine | Clean every 250 hours or when the restriction indicator comes on. Replace after 6 cleanings or after one year. | Ref 07 | $127.76 each | |
| 4286130 | Air cleaner element (inner)ELEMENT;FILTER | 1 per machine | Replace with the outer element. | Ref 08 | $96.75 each |
Hydraulic
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00033064WA | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | none | $105.21 | |
| 4437838 | Hydraulic air breather elementELEMENT | 1 per machine | Every 5,000 hours | Ref 02 | $29.80 each |
Pilot
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4630525 | Pilot filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |
Cab air
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00022308 | Air conditioner fresh air filterFILTER;AIR | 1 per machine | Clean every 500 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings. | Ref 10 | $75.47 each | |
| YA00054032 | Air conditioner circulating air filterELEMENT;FILTER | 1 per machine | Clean every 500 hours. On dusty work sites, clean and replace sooner. Replace after 6 cleanings. | Ref 09 | $82.28 each |
DEF
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058284formerly listed as YA00078038 | DEF supply module main filterFILTER | 1 per machine | Every 4,500 hours | Ref 11 | $140.28 each | |
| YA00075878 | DEF tank water supply inlet filterFILTER | 1 per machine | Every 4,500 hours | Ref 12 | $248.98 each |
Other
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083627 | Aftertreatment device filter (muffler filter) | 1 per machine | Every 6,000 hours | none | Quote on request |
Parts Due at Each Service
Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.
Due at 500 hours
1 part for the ZX190LC-7H 500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each |
Due at 1,000 hours
5 parts for the ZX190LC-7H 1,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00034622 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $153.78 each | |
| YA00033064WA | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | none | $105.21 | |
| 4630525 | Pilot filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |
Due at 4,500 hours
4 parts for the ZX190LC-7H 4,500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each | |
| YNM129G01-03020formerly listed as YA00077043 | Oil separator elementELEMENT;FILTER | 1 per machine | Every 4,500 hours | Ref 13 | Quote on request | |
| YA00058284formerly listed as YA00078038 | DEF supply module main filterFILTER | 1 per machine | Every 4,500 hours | Ref 11 | $140.28 each | |
| YA00075878 | DEF tank water supply inlet filterFILTER | 1 per machine | Every 4,500 hours | Ref 12 | $248.98 each |
Due at 5,000 hours
6 parts for the ZX190LC-7H 5,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00034622 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $153.78 each | |
| YA00033064WA | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | none | $105.21 | |
| 4437838 | Hydraulic air breather elementELEMENT | 1 per machine | Every 5,000 hours | Ref 02 | $29.80 each | |
| 4630525 | Pilot filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each |
Due at 6,000 hours
6 parts for the ZX190LC-7H 6,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00077011formerly listed as YNM129G20-35150 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Ref 04 | $61.38 each | |
| YA00005785 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 06 | $60.00 each | |
| YA00034622 | Fuel main filter elementFILTER;FUEL | 1 per machine | Every 1,000 hours | Ref 05 | $153.78 each | |
| YA00033064WA | High performance full-flow filterELEMENT;FILTER | 1 per machine | Every 1,000 hours | none | $105.21 | |
| 4630525 | Pilot filter (with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Ref 03 | $35.34 each | |
| YA00083627 | Aftertreatment device filter (muffler filter) | 1 per machine | Every 6,000 hours | none | Quote on request |
Also on these drawings
Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.
| Ref | Part number | Description | Qty per machine | Price | Add to pick list |
|---|---|---|---|---|---|
| Ref 01 | YA00033064 | High performance full-flow filterELEMENT;FILTER | 1 per machine | $96.52 each | |
| Ref 12 | YA60085046 | Urea water tank water supply inlet filterKITHitachi no longer recommends ordering this number. The parts counter will confirm the current one. | 1 per machine | Quote on request | |
| Ref 51 | YA00077009 | Engine fan beltBELT;FAN | 1 per machine | Quote on request | |
| Ref 52 | 4365372 | Air conditioner compressor beltBELT;V | 1 per machine | Quote on request |
Other Hitachi Excavators
Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.
For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
