Hitachi LANDCROS ZW50-5B Service Parts

7 parts on Hitachi's maintenance schedule for the ZW50-5B: filters and elements with the current part number, the service interval and the quantity per machine. 7 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZW50-5B, issued May 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0
Hitachi LANDCROS ZW50-5B periodic replacement drawing, Filter, element, belt parts

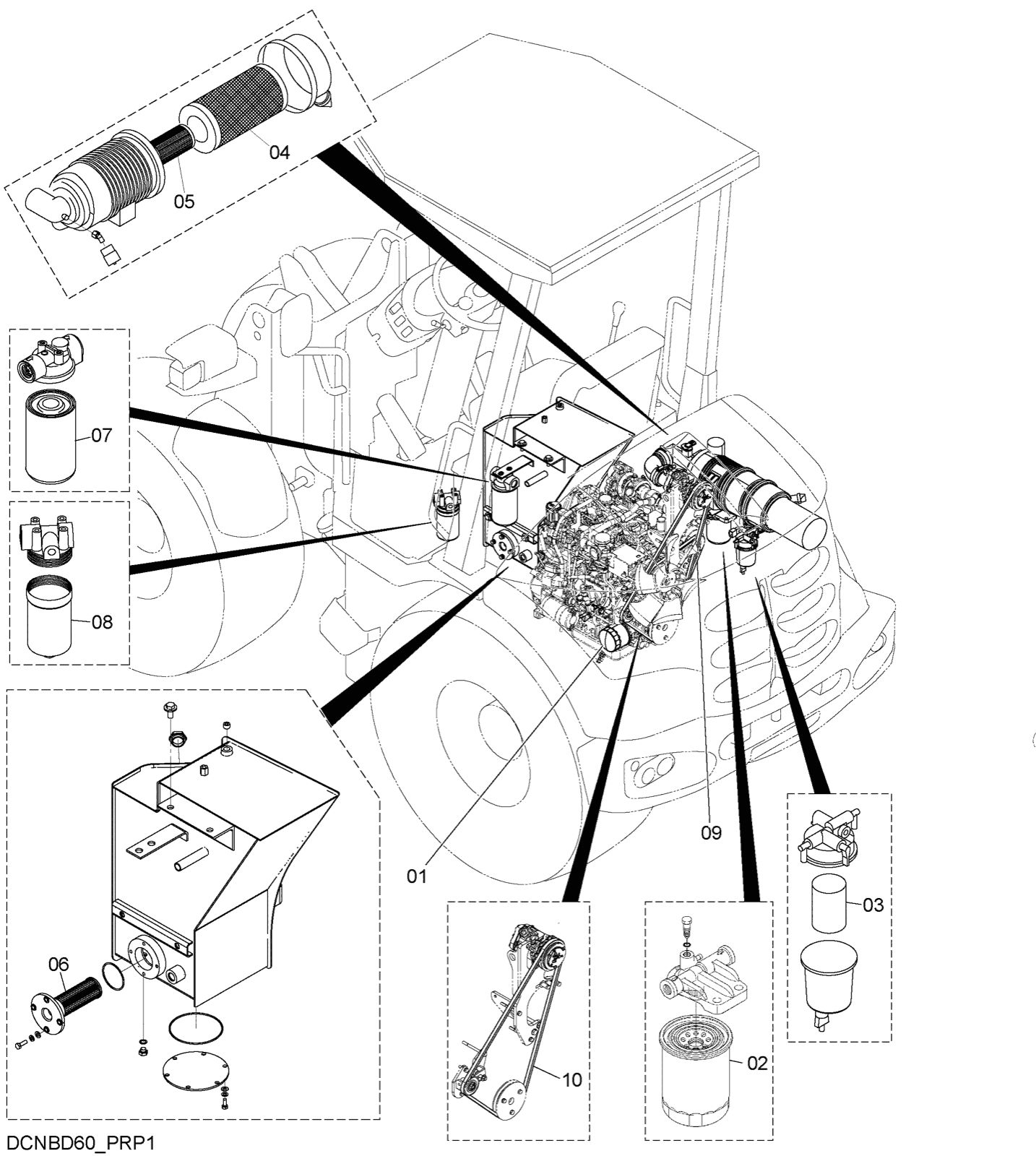

Fig 1: Filter, element, belt parts
Hitachi LANDCROS ZW50-5B periodic replacement drawing, Filter, element, belt parts
Fig 2: Filter, element, belt parts

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
KBTV063151682Oil separator element (blow-by gases)ELEMENT,KIT1 per machineEvery 1,000 hoursnone$246.02

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
KBT1J52143172formerly listed as YA00046445Fuel main filterFILTER1 per machineEvery 500 hoursFig 1, ref 02$88.23

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4290940formerly listed as 305021-11130Air cleaner element (outer)ELEMENT1 per machineWhen the indicator light comes on.Fig 1, ref 04$66.17 each
4326841formerly listed as 305021-11120Air cleaner element (inner)ELEMENT1 per machineAfter the fifth replacement of the outer filter.Fig 1, ref 05$50.74 each

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4613840formerly listed as 336781-31110Return filterFILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07$109.54 each

Transmission and axle

Transmission and axle parts on Hitachi's maintenance schedule for the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08$35.34 each

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 100 hours

3 parts for the ZW50-5B 100 hour service.
Parts due at 100 hours on the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
4613840formerly listed as 336781-31110Return filterFILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07$109.54 each
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08$35.34 each

Due at 250 hours

1 part for the ZW50-5B 250 hour service.
Parts due at 250 hours on the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each

Due at 500 hours

2 parts for the ZW50-5B 500 hour service.
Parts due at 500 hours on the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
KBT1J52143172formerly listed as YA00046445Fuel main filterFILTER1 per machineEvery 500 hoursFig 1, ref 02$88.23

Due at 1,000 hours

5 parts for the ZW50-5B 1,000 hour service.
Parts due at 1,000 hours on the ZW50-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
KBTV063151682Oil separator element (blow-by gases)ELEMENT,KIT1 per machineEvery 1,000 hoursnone$246.02
KBT1J52143172formerly listed as YA00046445Fuel main filterFILTER1 per machineEvery 500 hoursFig 1, ref 02$88.23
4613840formerly listed as 336781-31110Return filterFILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07$109.54 each
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08$35.34 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZW50-5B drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Fig 1, ref 03YD00017483Fuel pre filterELEMENT;FILTER1 per machineQuote on request
Fig 1, ref 0662J7812112Suction filterSTRAINER1 per machine$130.58 each
Fig 1, ref 09KBT1726697022formerly listed as YA00047449Fan belt (engine)BELT;FAN1 per machineQuote on request
Fig 1, ref 1062J1712113BELT;V1 per machineQuote on request
Fig 2, ref 03KBTRD45151940formerly listed as YJ00004168Fuel pre filterELEMENT;FILTER1 per machineQuote on request
Fig 2, ref 09KBTT142017800formerly listed as YA00048218Fan belt (engine)BELT;FAN1 per machineQuote on request

Other Hitachi Wheel Loaders

Search the full catalog for anything not on this list, or open your pick list to send it to Garton Parts.

For the exact kit for your serial number, call Garton Parts at 1-877-TRACTOR.
