Hitachi LANDCROS ZW330-6 Service Parts
17 parts on Hitachi's maintenance schedule for the ZW330-6: filters and elements with the current part number, the service interval and the quantity per machine. 17 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.
Intervals: Hitachi's maintenance schedule for the ZW330-6, issued May 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.
Pick list0
Engine oil
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|

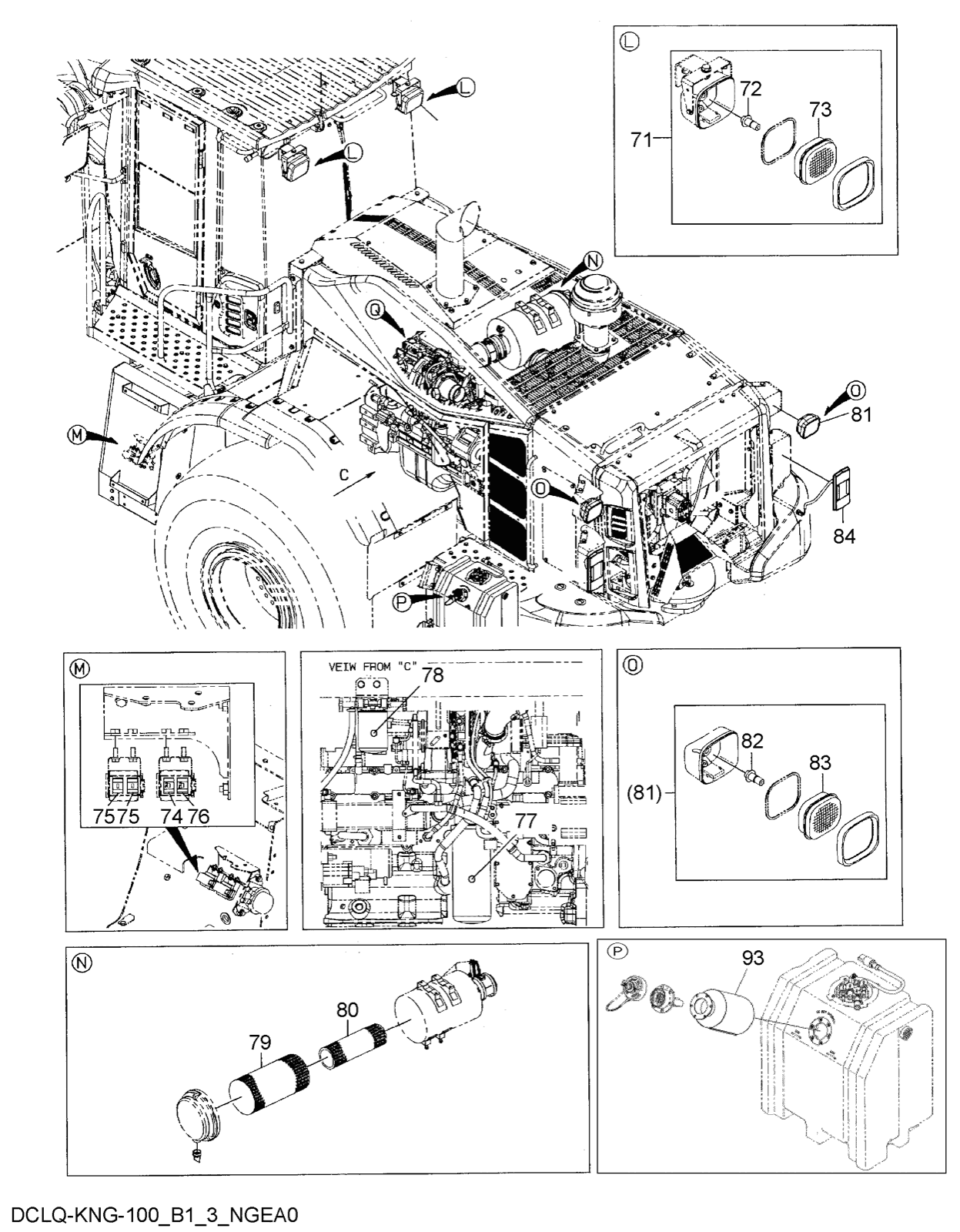

| YA00083031formerly listed as YL00009256 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Fig 3, ref 77 | $66.31 each | |
| KCYECV50628 | Crankcase air breather elementELEMENT | 1 per machine | Every 2,000 hours | none | $290.69 |
Fuel
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|

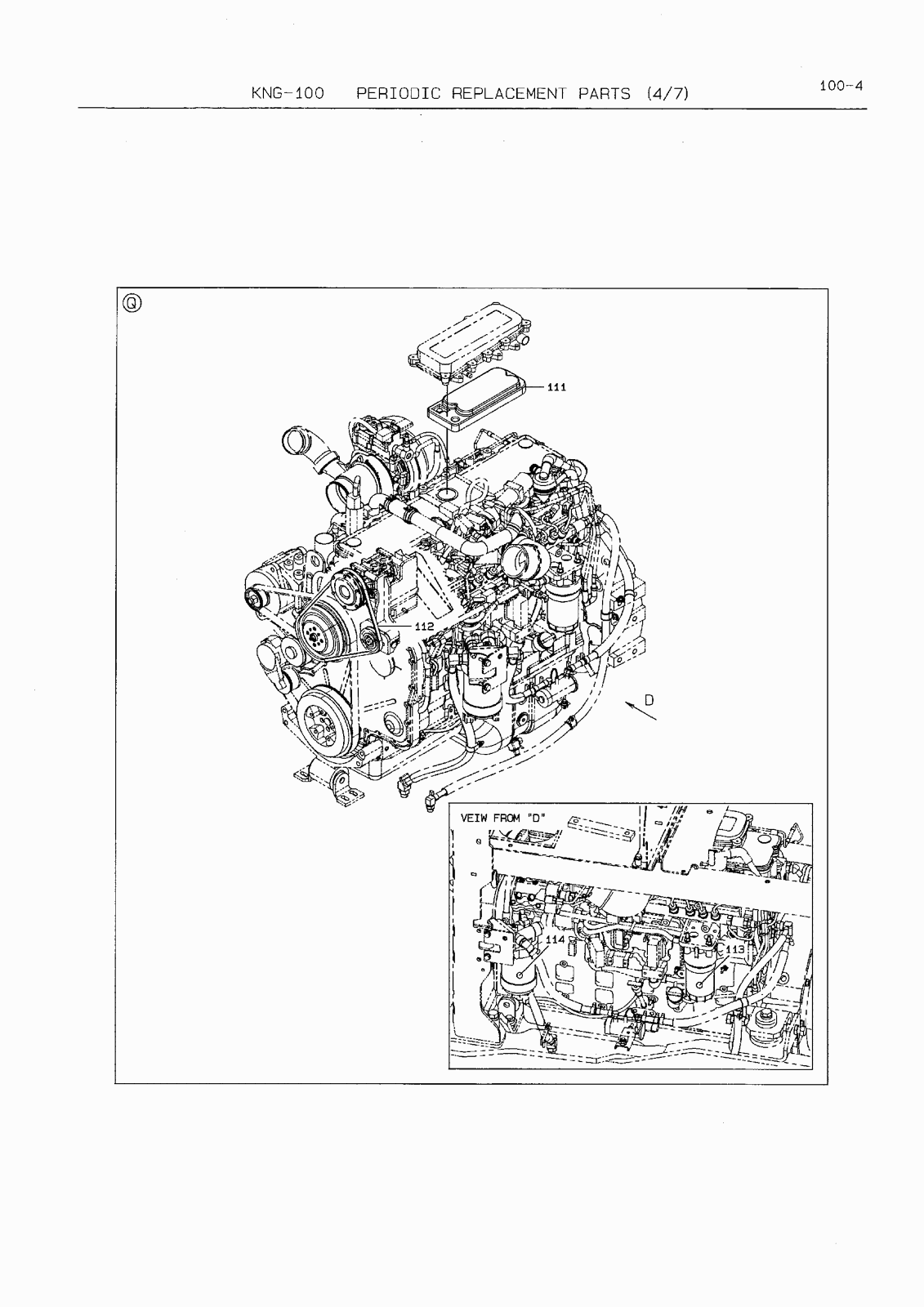

| YA00083035formerly listed as YL00008002 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 114 | $107.60 each | |
| YA00083039formerly listed as YL00008001 | Fuel main filterFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 113 | $64.20 each |
Air intake
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4459548formerly listed as 3098170820 and WA4459548 | Air cleaner element (inner)ELEMENT | 1 per machine | At the fifth replacement of the outer element, or every two years. | Fig 3, ref 80 | $95.31 each | |
| 4459549formerly listed as 3098170830 | Air cleaner element (outer)ELEMENT | 1 per machine | Each time the monitor indicator comes on. | Fig 3, ref 79 | $112.32 each |
Hydraulic
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|

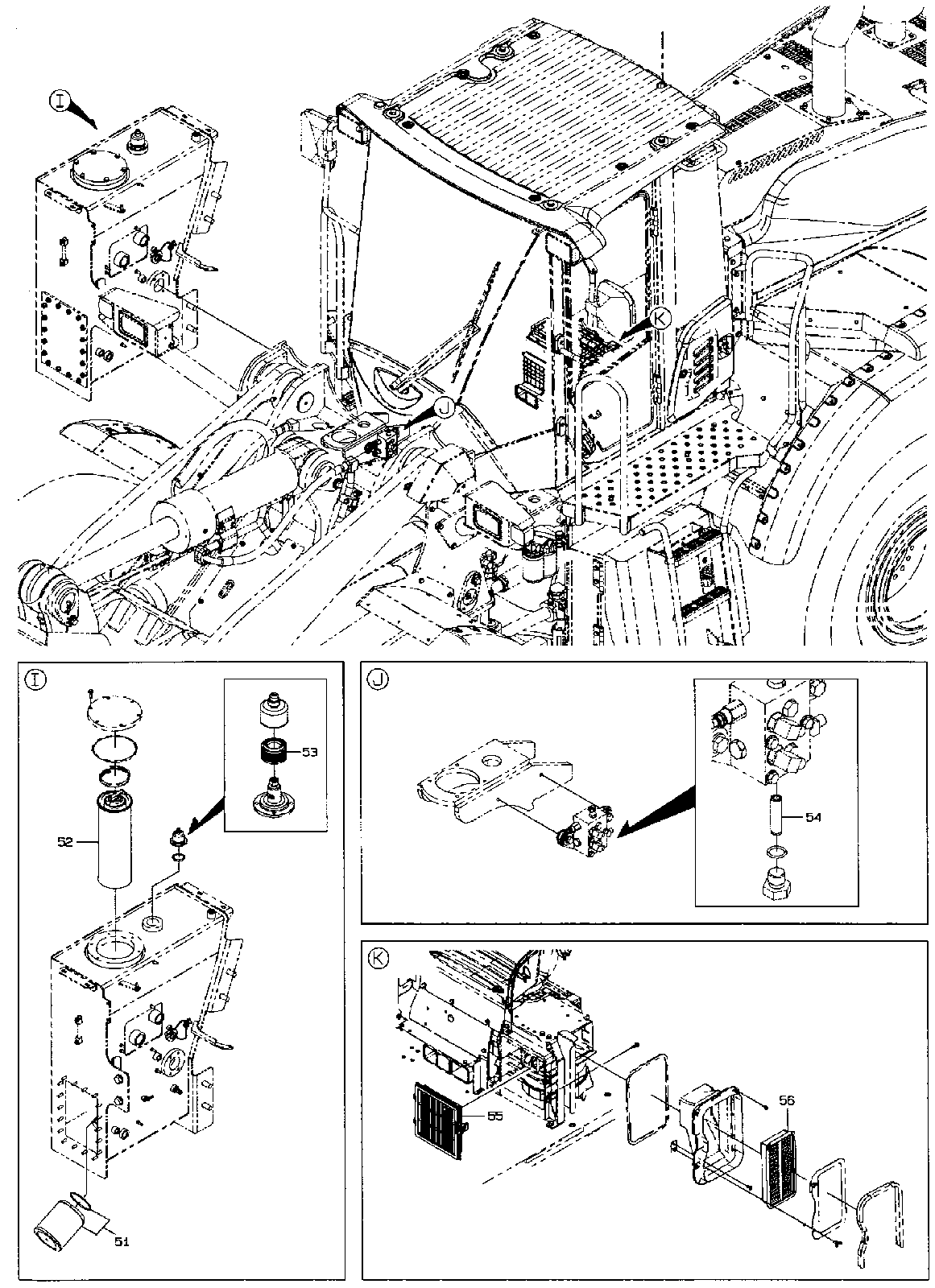

| YA00072025 | Hydraulic oil tank return filter (full-flow filter with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 52 | $165.42 each | |
| 4437838 | Hydraulic oil tank air breather elementELEMENT | 1 per machine | Every 2,000 hours | Fig 2, ref 53 | $29.80 each |
Pilot
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 3098170720 | Pilot oil filter (steering circuit)ELEMENT;FILTER | 1 per machine | Clean every 2,000 hours. | Fig 2, ref 54 | $46.86 each | |

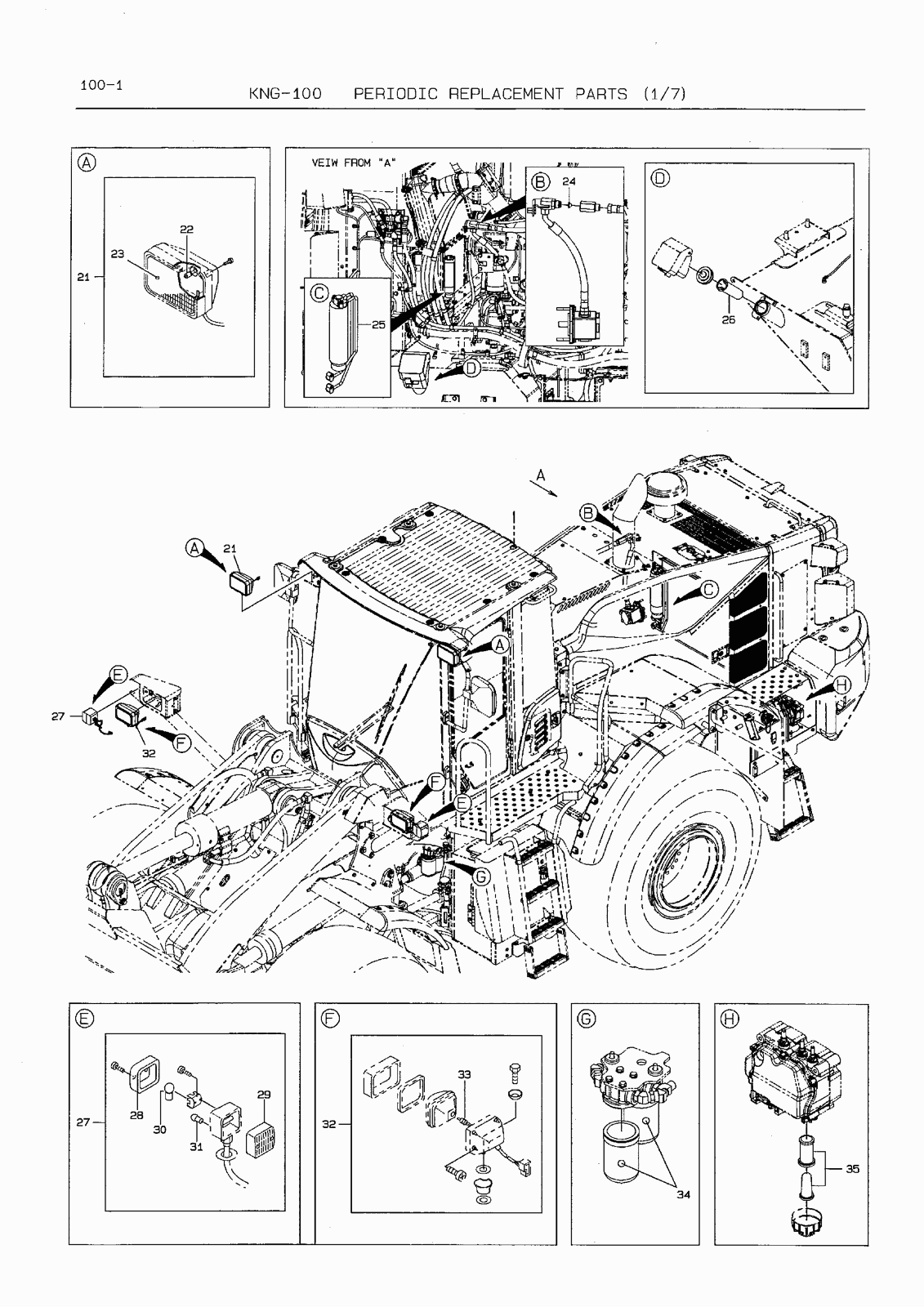

| 4033060610 | Pilot oil filter (brake circuit)FILTER | 1 per machine | Clean every 2,000 hours. | Fig 1, ref 24 | $58.11 each |
Cab air
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 4251527 | Air conditioner fresh air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 56 | $101.38 each | |
| YA00054032formerly listed as YA00001490 | Air conditioner circulating air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 55 | $82.28 each | |
| YA00077800 | Cab prefilter (optional)AIR FILTER | 1 per machine | Every 1,000 hours | none | $672.92 each |
DEF
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00058284formerly listed as YL00008298 | DEF supply module main filterFILTER | 1 per machine | Every 4,500 hours | Fig 1, ref 35 | $140.28 each | |
| YA00086726formerly listed as YA00079241 | DEF tank water supply inlet filterFILTER;UREA | 1 per machine | Every 4,500 hours | Fig 3, ref 101, 93 | $244.65 each |
Transmission and axle
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 3111570040 | Transmission oil filterELEMENT;FILTER | 2 per machine | First 250 hours, then every 1,000 hours | Fig 1, ref 34 | $232.95 each |
Other
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083041formerly listed as YL00007415 | DCA4 coolant filter (WF2072)ELEMENT;FILTER | 1 per machine | Every 500 hours | Fig 3, ref 78 | $42.26 each |
Parts Due at Each Service
Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.
Due at 250 hours
1 part for the ZW330-6 250 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| 3111570040 | Transmission oil filterELEMENT;FILTER | 2 per machine | First 250 hours, then every 1,000 hours | Fig 1, ref 34 | $232.95 each |
Due at 500 hours
4 parts for the ZW330-6 500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083031formerly listed as YL00009256 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Fig 3, ref 77 | $66.31 each | |
| YA00083035formerly listed as YL00008002 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 114 | $107.60 each | |
| YA00083039formerly listed as YL00008001 | Fuel main filterFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 113 | $64.20 each | |
| YA00083041formerly listed as YL00007415 | DCA4 coolant filter (WF2072)ELEMENT;FILTER | 1 per machine | Every 500 hours | Fig 3, ref 78 | $42.26 each |
Due at 1,000 hours
9 parts for the ZW330-6 1,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083031formerly listed as YL00009256 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Fig 3, ref 77 | $66.31 each | |
| YA00083035formerly listed as YL00008002 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 114 | $107.60 each | |
| YA00083039formerly listed as YL00008001 | Fuel main filterFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 113 | $64.20 each | |
| YA00072025 | Hydraulic oil tank return filter (full-flow filter with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 52 | $165.42 each | |
| 4251527 | Air conditioner fresh air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 56 | $101.38 each | |
| YA00054032formerly listed as YA00001490 | Air conditioner circulating air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 55 | $82.28 each | |
| YA00077800 | Cab prefilter (optional)AIR FILTER | 1 per machine | Every 1,000 hours | none | $672.92 each | |
| 3111570040 | Transmission oil filterELEMENT;FILTER | 2 per machine | First 250 hours, then every 1,000 hours | Fig 1, ref 34 | $232.95 each | |
| YA00083041formerly listed as YL00007415 | DCA4 coolant filter (WF2072)ELEMENT;FILTER | 1 per machine | Every 500 hours | Fig 3, ref 78 | $42.26 each |
Due at 2,000 hours
11 parts for the ZW330-6 2,000 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083031formerly listed as YL00009256 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Fig 3, ref 77 | $66.31 each | |
| KCYECV50628 | Crankcase air breather elementELEMENT | 1 per machine | Every 2,000 hours | none | $290.69 | |
| YA00083035formerly listed as YL00008002 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 114 | $107.60 each | |
| YA00083039formerly listed as YL00008001 | Fuel main filterFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 113 | $64.20 each | |
| YA00072025 | Hydraulic oil tank return filter (full-flow filter with O-ring)ELEMENT;FILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 52 | $165.42 each | |
| 4437838 | Hydraulic oil tank air breather elementELEMENT | 1 per machine | Every 2,000 hours | Fig 2, ref 53 | $29.80 each | |
| 4251527 | Air conditioner fresh air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 56 | $101.38 each | |
| YA00054032formerly listed as YA00001490 | Air conditioner circulating air filterFILTER | 1 per machine | Every 1,000 hours | Fig 2, ref 55 | $82.28 each | |
| YA00077800 | Cab prefilter (optional)AIR FILTER | 1 per machine | Every 1,000 hours | none | $672.92 each | |
| 3111570040 | Transmission oil filterELEMENT;FILTER | 2 per machine | First 250 hours, then every 1,000 hours | Fig 1, ref 34 | $232.95 each | |
| YA00083041formerly listed as YL00007415 | DCA4 coolant filter (WF2072)ELEMENT;FILTER | 1 per machine | Every 500 hours | Fig 3, ref 78 | $42.26 each |
Due at 4,500 hours
6 parts for the ZW330-6 4,500 hour service.
| Part number | Description | Qty per machine | Interval | Ref | Price | Add to pick list |
|---|---|---|---|---|---|---|
| YA00083031formerly listed as YL00009256 | Engine oil filterFILTER;OIL | 1 per machine | Every 500 hours | Fig 3, ref 77 | $66.31 each | |
| YA00083035formerly listed as YL00008002 | Fuel pre-filter elementFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 114 | $107.60 each | |
| YA00083039formerly listed as YL00008001 | Fuel main filterFILTER;FUEL | 1 per machine | Every 500 hours | Fig 4, ref 113 | $64.20 each | |
| YA00058284formerly listed as YL00008298 | DEF supply module main filterFILTER | 1 per machine | Every 4,500 hours | Fig 1, ref 35 | $140.28 each | |
| YA00086726formerly listed as YA00079241 | DEF tank water supply inlet filterFILTER;UREA | 1 per machine | Every 4,500 hours | Fig 3, ref 101, 93 | $244.65 each | |
| YA00083041formerly listed as YL00007415 | DCA4 coolant filter (WF2072)ELEMENT;FILTER | 1 per machine | Every 500 hours | Fig 3, ref 78 | $42.26 each |
Also on these drawings
Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.
| Ref | Part number | Description | Qty per machine | Price | Add to pick list |
|---|---|---|---|---|---|
| Fig 1, ref 25 | 4552070070 | Air conditioner receiver dryerUNIT;RECEIVER | 1 per machine | $967.86 each | |
| Fig 1, ref 26 | YA00048742formerly listed as 4033060400 | Fuel tank groupSTRAINER | 1 per machine | $98.45 each | |
| Fig 2, ref 51 | 4033560150 | Hydraulic oil tank suction filterFILTER ASSY,SUCTION | 1 per machine | $131.17 each | |
| Fig 4, ref 111 | CV5062800MFformerly listed as K5263190 and YE5263190 | ELEMENT,BREATHER | 1 per machine | $199.90 | |
| Fig 4, ref 112 | YA00104835formerly listed as 7802211240 | BELT;VFits from serial 001013. | 1 per machine | Quote on request |
