Hitachi LANDCROS ZW100-6 Service Parts

7 parts on Hitachi's maintenance schedule for the ZW100-6: filters and elements with the current part number, the service interval and the quantity per machine. 7 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZW100-6, issued April 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0

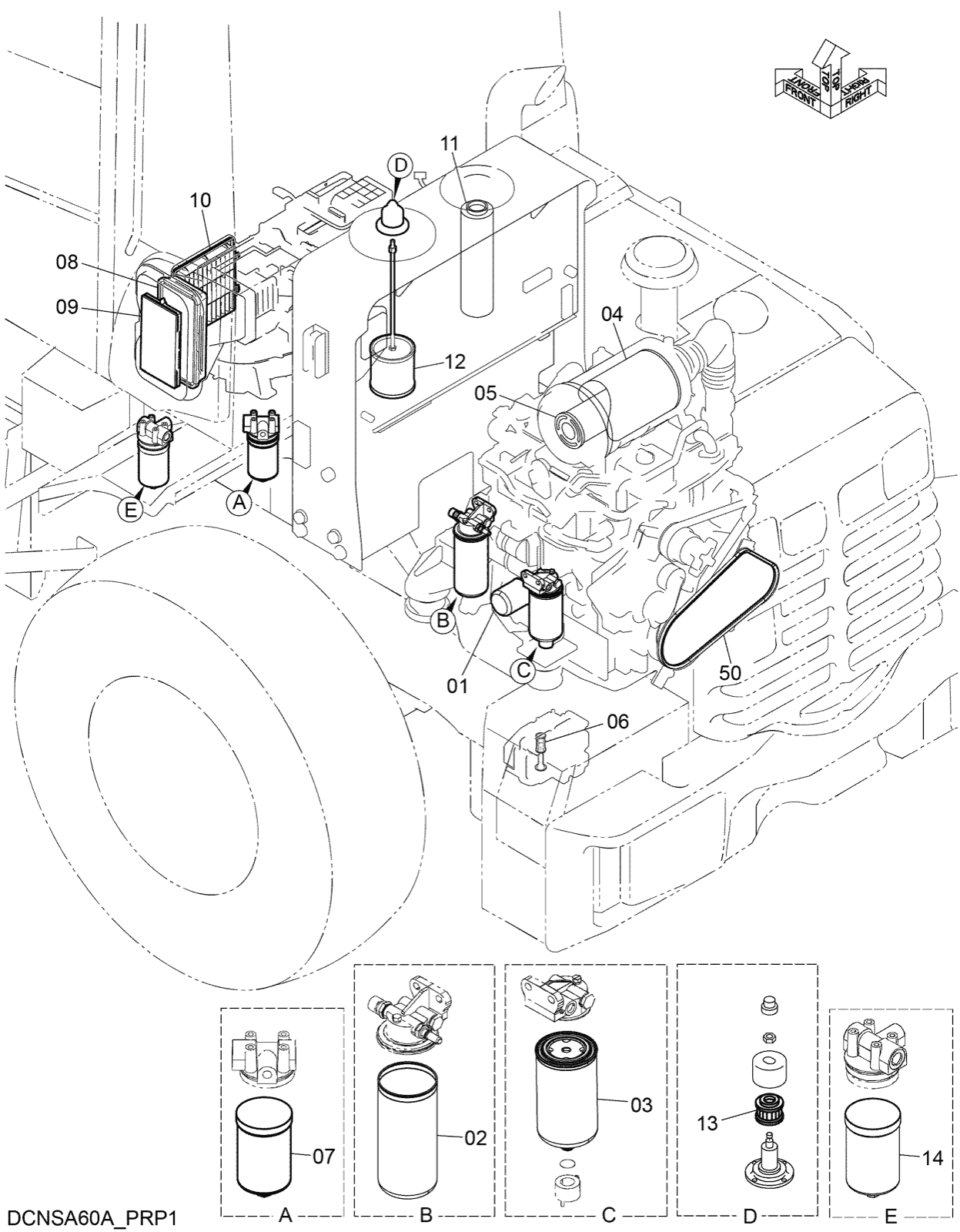

Hitachi LANDCROS ZW100-6 periodic replacement drawing, Filter, element, belt parts
Fig 1: Filter, element, belt parts

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00078641Engine oil filterFILTER;OIL1 per machineEvery 500 hoursRef 01$23.75 each

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00078640Fuel main filterFILTER;FUEL1 per machineEvery 500 hoursRef 02$156.78 each

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
263A237001Air cleaner element (inner)ELEMENT;FILTER1 per machineAfter the fifth replacement of the outer filter.Ref 05$45.45 each
263A237011Air cleaner element (outer)ELEMENT;FILTER1 per machineWhen the indicator light comes on.Ref 04$73.72 each

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4129280Hydraulic tank oil filterELEMENT;FILTER1 per machineEvery 500 hoursRef 11$33.21 each

DEF

DEF parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00058284DEF supply module main filterFILTER1 per machineEvery 1,000 hoursRef 06$140.28 each

Transmission and axle

Transmission and axle parts on Hitachi's maintenance schedule for the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4630525formerly listed as YA00011710HST oil filter and transmission oil filter (only the transmission oil filter at the first 250 hours)ELEMENT;FILTER2 per machineFirst 250 hours, then every 500 hoursRef 07, 14$35.34 each

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 250 hours

1 part for the ZW100-6 250 hour service.
Parts due at 250 hours on the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4630525formerly listed as YA00011710HST oil filter and transmission oil filter (only the transmission oil filter at the first 250 hours)ELEMENT;FILTER2 per machineFirst 250 hours, then every 500 hoursRef 07, 14$35.34 each

Due at 500 hours

4 parts for the ZW100-6 500 hour service.
Parts due at 500 hours on the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00078641Engine oil filterFILTER;OIL1 per machineEvery 500 hoursRef 01$23.75 each
YA00078640Fuel main filterFILTER;FUEL1 per machineEvery 500 hoursRef 02$156.78 each
4129280Hydraulic tank oil filterELEMENT;FILTER1 per machineEvery 500 hoursRef 11$33.21 each
4630525formerly listed as YA00011710HST oil filter and transmission oil filter (only the transmission oil filter at the first 250 hours)ELEMENT;FILTER2 per machineFirst 250 hours, then every 500 hoursRef 07, 14$35.34 each

Due at 1,000 hours

5 parts for the ZW100-6 1,000 hour service.
Parts due at 1,000 hours on the ZW100-6
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
YA00078641Engine oil filterFILTER;OIL1 per machineEvery 500 hoursRef 01$23.75 each
YA00078640Fuel main filterFILTER;FUEL1 per machineEvery 500 hoursRef 02$156.78 each
4129280Hydraulic tank oil filterELEMENT;FILTER1 per machineEvery 500 hoursRef 11$33.21 each
YA00058284DEF supply module main filterFILTER1 per machineEvery 1,000 hoursRef 06$140.28 each
4630525formerly listed as YA00011710HST oil filter and transmission oil filter (only the transmission oil filter at the first 250 hours)ELEMENT;FILTER2 per machineFirst 250 hours, then every 500 hoursRef 07, 14$35.34 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZW100-6 drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Ref 03YA00031040Fuel pre-filter elementFILTER;FUEL1 per machine$114.11 each
Ref 084251527Air-conditioner filter (outside)FILTER1 per machine$101.38 each
Ref 09YA00005725Air-conditioner filter (outside) (double)FILTER1 per machine$119.72 each
Ref 10YA00054032formerly listed as YA00001490Air-conditioner filter (inside)ELEMENT;FILTER1 per machine$82.28 each
Ref 124285577formerly listed as 4305118Suction filterFILTER;SUCTION1 per machine$77.62 each
Ref 134437838Air breather filterELEMENT1 per machine$29.80 each
Ref 50YA00025584Air conditioner drive beltBELT;V1 per machine$126.89 each
