Hitachi LANDCROS ZW30-5B Service Parts

7 parts on Hitachi's maintenance schedule for the ZW30-5B: filters and elements with the current part number, the service interval and the quantity per machine. 5 have a Hitachi price in our catalog. Confirm by serial number with Garton Parts before ordering.

Intervals: Hitachi's maintenance schedule for the ZW30-5B, issued April 2023. Drawings: Hitachi's parts catalog, pulled 2026-09-04. Prices are Hitachi's published USD prices from our catalog.

Pick list0
Hitachi LANDCROS ZW30-5B periodic replacement drawing, Filter, element, belt parts

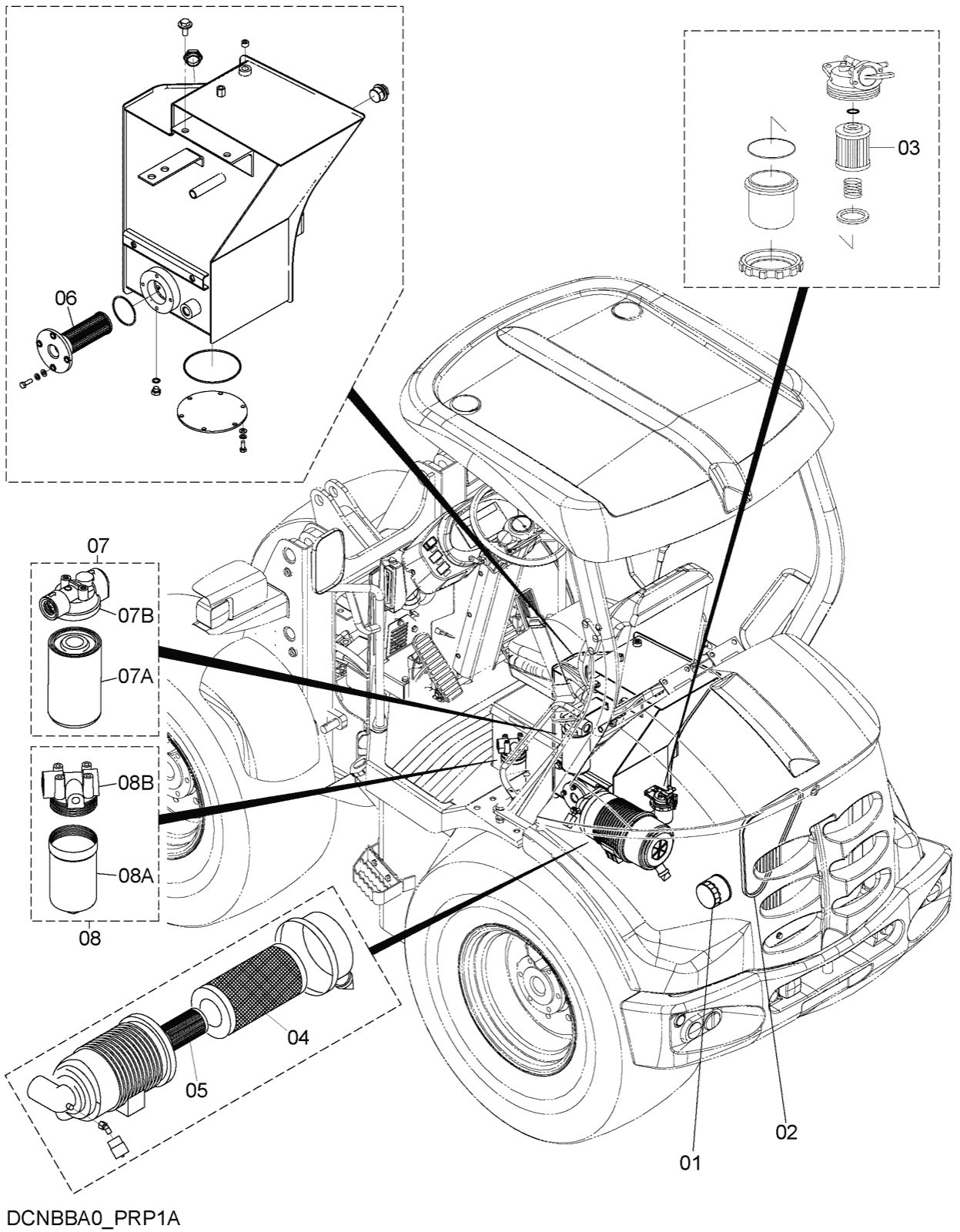

Fig 1: Filter, element, belt parts
Hitachi LANDCROS ZW30-5B periodic replacement drawing, Filter, element, belt parts

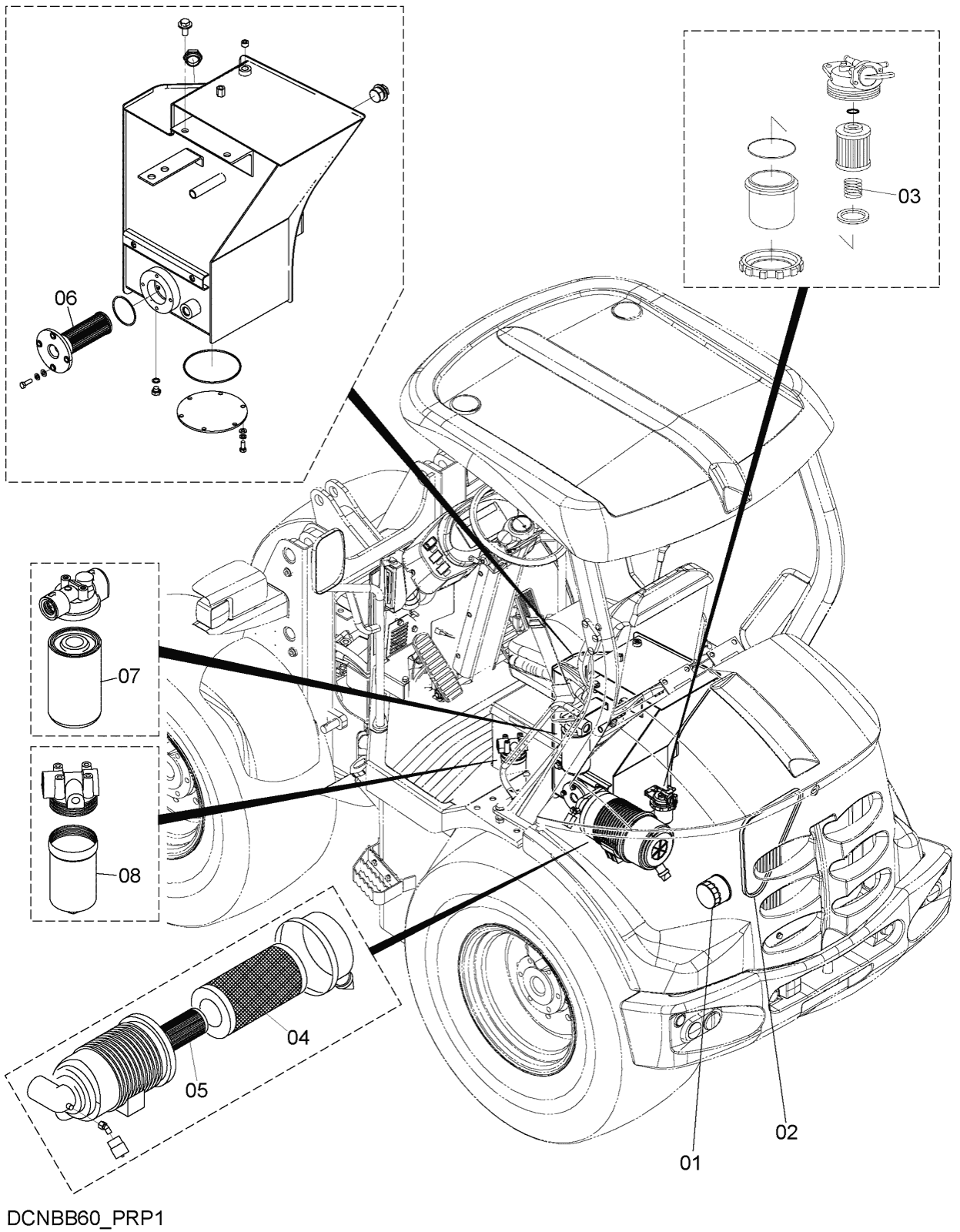

Fig 2: Filter, element, belt parts

Engine oil

Engine oil parts on Hitachi's maintenance schedule for the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each

Fuel

Fuel parts on Hitachi's maintenance schedule for the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
KBTRA21151280formerly listed as 62H0619811Fuel main filterELEMENT1 per machineEvery 500 hoursFig 1, ref 03Quote on request
KBTRB10151282Fuel pre-filter element1 per machineEvery 1,000 hoursnoneQuote on request

Air intake

Air intake parts on Hitachi's maintenance schedule for the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4290940formerly listed as 3050211113Air cleaner element (outer)ELEMENT;OUTER1 per machineWhen the indicator light comes on.Fig 1, ref 04$66.17 each
4326841formerly listed as 3050211112Air cleaner element (inner)ELEMENT;INNER1 per machineAfter the fifth replacement of the outer filter.Fig 1, ref 05$50.74 each

Hydraulic

Hydraulic parts on Hitachi's maintenance schedule for the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4613840formerly listed as 336781-31110Return filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07, 07A$109.54 each

Transmission and axle

Transmission and axle parts on Hitachi's maintenance schedule for the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08, 08A$35.34 each

Parts Due at Each Service

Each list includes the shorter intervals that fall due at the same service, so the 1,000 hour list repeats the 500 hour parts.

Due at 100 hours

3 parts for the ZW30-5B 100 hour service.
Parts due at 100 hours on the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
4613840formerly listed as 336781-31110Return filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07, 07A$109.54 each
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08, 08A$35.34 each

Due at 250 hours

1 part for the ZW30-5B 250 hour service.
Parts due at 250 hours on the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each

Due at 500 hours

2 parts for the ZW30-5B 500 hour service.
Parts due at 500 hours on the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
KBTRA21151280formerly listed as 62H0619811Fuel main filterELEMENT1 per machineEvery 500 hoursFig 1, ref 03Quote on request

Due at 1,000 hours

5 parts for the ZW30-5B 1,000 hour service.
Parts due at 1,000 hours on the ZW30-5B
Part numberDescriptionQty per machineIntervalRefPriceAdd to pick list
WA4454527formerly listed as 4454527Engine oil filterFILTER,OIL1 per machineFirst 100 hours, then every 250 hoursFig 1, ref 01$26.83 each
KBTRA21151280formerly listed as 62H0619811Fuel main filterELEMENT1 per machineEvery 500 hoursFig 1, ref 03Quote on request
KBTRB10151282Fuel pre-filter element1 per machineEvery 1,000 hoursnoneQuote on request
4613840formerly listed as 336781-31110Return filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 07, 07A$109.54 each
4630525HST oil filterELEMENT;FILTER1 per machineFirst 100 hours, then every 1,000 hoursFig 1, ref 08, 08A$35.34 each

Also on these drawings

Printed on the drawings above but not on the maintenance schedule, listed by drawing ref.

Other parts on the ZW30-5B drawings
RefPart numberDescriptionQty per machinePriceAdd to pick list
Fig 1, ref 02KBT1726697022formerly listed as YA00047449Fan belt (engine)BELT;FAN1 per machineQuote on request
Fig 1, ref 0662J7812112Suction filterSTRAINER1 per machine$130.58 each
Fig 2, ref 02KBTT142017800formerly listed as YA00048218Fan belt (engine)BELT;FAN1 per machineQuote on request
Fig 2, ref 073367813100FILTER1 per machineQuote on request
Fig 2, ref 0862H2713100FILTER1 per machine$312.02 each
