Historical equipment archive

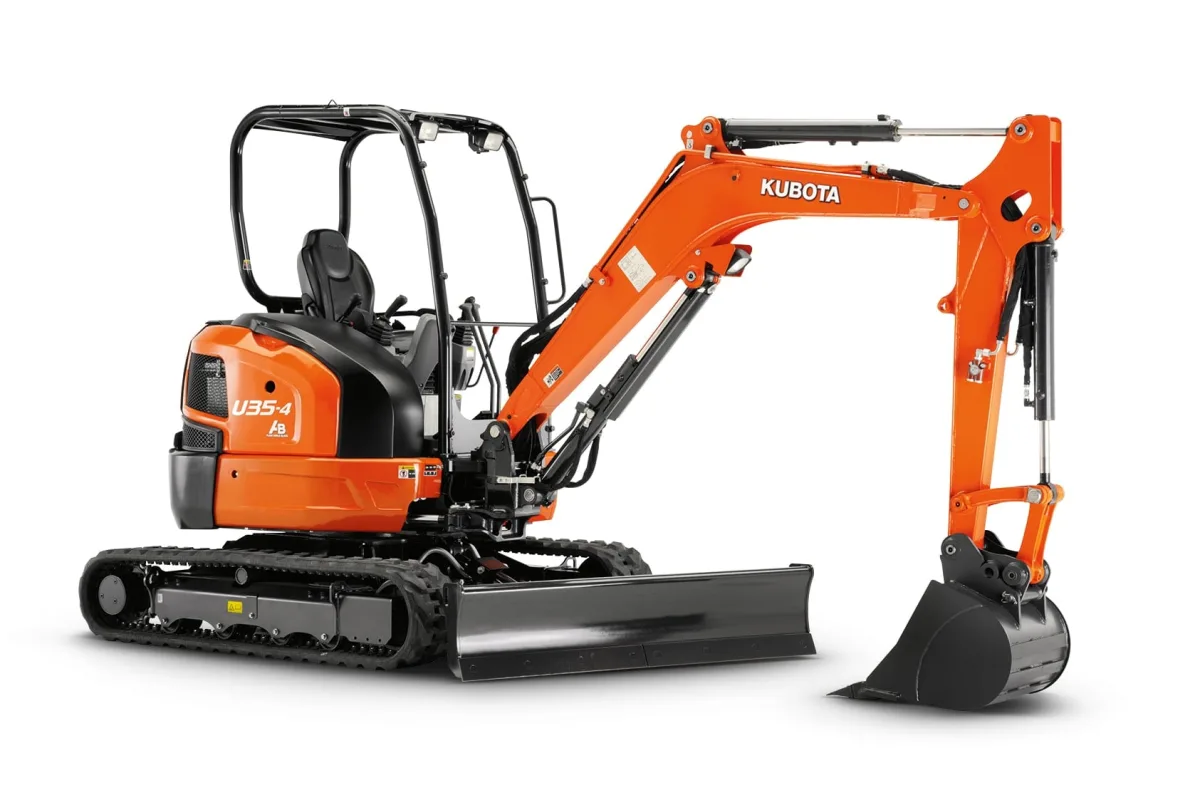

Kubota U35-4 R1
This page preserves historical Garton Tractor listings for the Kubota U35-4 R1 configuration and identifies factory specifications published for the U35-4 family.
Archived equipment record
This is a historical listing record, not a statement of current inventory, pricing, or availability. R1 identifies a rubber-track, four-post-canopy machine with a straight dozer blade. The separate R1A angle-blade configuration is not represented here.
Archived configuration
What the historical record says
- R1 configuration
- Rubber tracks
- Four-post canopy
- Straight dozer blade
Source-backed specifications
Factory specifications
Factory values are from Kubota brochure 8866-01-US. The brochure covers multiple U35-4 configurations, so this page labels the archived R1 configuration separately.
Kubota U.S. U35-4 brochure (opens in a new tab)- Engine
- Kubota D1703M-DI-E4
- 3-cylinder diesel
- Engine power
- 24.8 gross hp
- 23.9 net hp
- Operating weight
- 8,129 lb
- Rubber tracks, canopy, straight blade
- Maximum digging depth
- 9 ft 8.9 in
- Maximum dumping height
- 11 ft 0.7 in
- Bucket breakout force
- 7,924 lbf
- Arm breakout force: 4,451 lbf
- Auxiliary hydraulic flow
- 15.8 gpm
- Travel speed
- 1.9 mph low
- 2.9 mph high
Operator documents
Match the exact manual
Confirm the document number, machine configuration, and serial applicability before using an archived manual.
